Product Details

Description



Features:

28/56-bit, 50 MHz digital audio processor
Stereo ADC: 102 dB dynamic range and -90 dB THD+N
4-channel DAC: 103 dB dynamic range and -90 dB THD+N
Complete stand-alone operation
Self-boot from serial EEPROM
Auxiliary ADC with four-input mux for analog control
GPIOs for digital controls and outputs
Fully programable with SigmaStudio' gr aphical tool
Sampling rates up to 192 kHz supported 28-bit * 28-bit multiplier with 56-bit accumulator
Double precision mode for full 56-bit processing
Clock Oscillator for generating master clock from crystal
PLL for generating master clock from 64 * fS, 256 * fS, 384 * fS, or 512 * fS clocks
Flexible serial data I/O ports with I2S compatible, leftjustified, right-justified, and TDM modes
On-chip voltage regulator for compatibility with 3.3 V systems
48-lead LQFP plastic package





Application

Multimedia speaker systems
MP3 player speaker docks
Automotive head units
Mini-component stereos
Digital televisions
Studio monitors
Speaker crossovers
Musical instrument effects processors
In-seat sound systems (aircraft/motor coaches)





Pinout

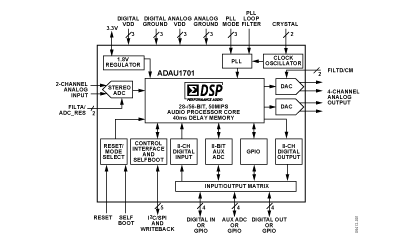

ADAU1701 Diagram

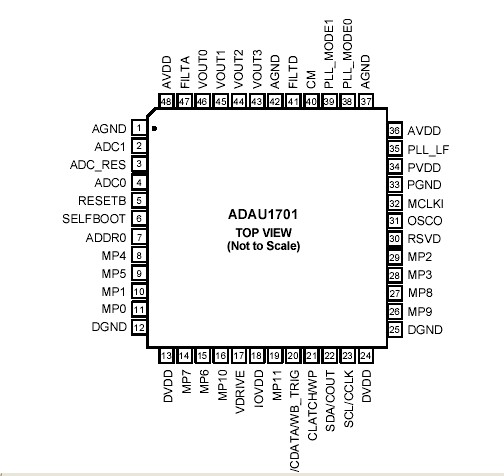

  Connection Diagram




Specifications

Instructions/Cycles 1024
DAC DNR (dB) 104dB
DAC THD+N @ 1 kHz (-3dB) 90dB
Digital I/O Channels 8/8
Analog I/O Channels 2/4
Product Description SigmaDSP? 28/56-Bit Audio Processor with Two ADCs and Four DACs


Parameter Min Max Unit
Input Voltage, HI (VIH)
Input Voltage, LO (VIL)
Input Leakage (IIH)
Input Leakage (IIL)
Low Level Output Voltage (VOL) IOVDD = x.x V, IOL = xx mA
Low Level Output Voltage (VOL) IOVDD = x.x V, IOL = xx mA
Input Capacitance










V
V
A
A
V
V
pF





Description

The ADAU1701 is a stand-alone 28/56-bit audio DSP that handles all system processing and control tasks. Processing includes equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, speaker compensation, and stereo image widening. These algorithms can be used to compensate for the real-world limitations of speakers, amplifiers, and listening environments, resulting in a dramatic improvement of perceived audio quality.

The signal processing used in the ADAU1701 is comparable to that found in high end studio equipment. Most of the processing is done in full 56-bit double-precision mode, resulting in very good low level signal performance. The ADAU1701 is a fully-programmable DSP. The easy-to-use SigmaStudio software allows the user to graphically configure a custom signal processing flow using blocks such as biquad filters, dynamics processors, level controls, and GPIO interface controls.

ADAU1701 programs can be loaded on power-up either from a serial EEPROM though its own self-boot mechanism or from an external microcontroller. On power-down, the current state of the parameters can be written back to the EEPROM from the ADAU1701 to be recalled the next time the program is run.

The ADAU1701 s two ADCs and four DACs provide an analogin to analog-out dynamic range greater than 98 dB and THD+N better than -92 dB. Digital input and output ports allow a glueless connection to additional ADCs and DACs. The ADAU1701 communicates through either an I2C bus or a 4-wire SPI port.
