Part Number: ADAV801
Description: The ADAV801 is a stereo audio codec intended for applications such as DVD or CD recorders that require high perfo...
- Table of contents:
ADAV801
-
Suppliers
DataSheet
General Description
ADAV801 General Description
The ADAV801 is a stereo audio codec intended for applications such as DVD or CD recorders that require high performance and flexible, cost-effective playback and record functionality. The ADAV801 features Analog Devices' proprietary, high performance converter cores to provide record (ADC), playback
(DAC), and format conversion (SRC) on a single chip. The ADAV801 record channel features variable input gain to allow for adjustment of recorded input levels and automatic level control, followed by a high performance stereo ADC whose digital output is sent to the record interface. The record channel
also features level detectors that can be used in feedback loops to adjust input levels for optimum recording. The playback channel features a high performance stereo DAC with independent digital volume control.
The sample rate converter (SRC) provides high performance sample rate conversion to allow inputs and outputs that require different sample rates to be matched. The SRC input can be selected from playback, auxiliary, DIR, or ADC (record). The SRC output can be applied to the playback DAC, both main and auxiliary record channels, and a DIT. Operation of the ADAV801 is controlled via an SPI-compatible serial interface, which allows the programming of individual control register settings. The ADAV801 operates from a single analog 3.3 V power supply and a digital power supply of 3.3 V with optional digital interface range of 3.0 V to 3.6 V.
ADAV801 Maximum Ratings
DVDD to DGND and ODVDD to DGND 0 V to 4.6 V
AVDD to AGND 0 V to 4.6 V
Digital Inputs DGND − 0.3 V to DVDD + 0.3 V
Analog Inputs AGND − 0.3 V to AVDD + 0.3 V
AGND to DGND −0.3 V to +0.3 V
Reference Voltage Indefinite short circuit to ground
Soldering (10 s) 300°C
AVDD to AGND 0 V to 4.6 V
Digital Inputs DGND − 0.3 V to DVDD + 0.3 V
Analog Inputs AGND − 0.3 V to AVDD + 0.3 V
AGND to DGND −0.3 V to +0.3 V
Reference Voltage Indefinite short circuit to ground
Soldering (10 s) 300°C
ADAV801 Features
Stereo analog-to-digital converter (ADC)
Supports 48/96 kHz sample rates
102 dB dynamic range
Single-ended input
Automatic level control
Stereo digital-to-analog converter (DAC)
Supports 32/44.1/48/96/192 kHz sample rates
101 dB dynamic range
Single-ended output
Asynchronous operation of ADC and DAC
Stereo sample rate converter (SRC)
Input/output range: 8 kHz to 192 kHz
140 dB dynamic range
Digital interfaces
Record
Playback
Auxiliary record
Auxiliary playback
S/PDIF (IEC60958) input and output
Digital interface receiver (DIR)
Digital interface transmitter (DIT)
PLL-based audio MCLK generators
Generates required DVDR system MCLKs
Device control via SPI®-compatible serial port
64-lead LQFP package
Supports 48/96 kHz sample rates
102 dB dynamic range
Single-ended input
Automatic level control
Stereo digital-to-analog converter (DAC)
Supports 32/44.1/48/96/192 kHz sample rates
101 dB dynamic range
Single-ended output
Asynchronous operation of ADC and DAC
Stereo sample rate converter (SRC)
Input/output range: 8 kHz to 192 kHz
140 dB dynamic range
Digital interfaces
Record
Playback
Auxiliary record
Auxiliary playback
S/PDIF (IEC60958) input and output
Digital interface receiver (DIR)
Digital interface transmitter (DIT)
PLL-based audio MCLK generators
Generates required DVDR system MCLKs
Device control via SPI®-compatible serial port
64-lead LQFP package
ADAV801 Typical Application
DVD-recordable
All formats
CD-R/W
All formats
CD-R/W

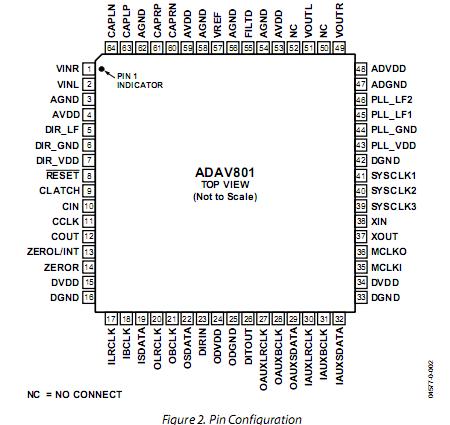

ADAV801 Connection Diagram
ADAV801
