Purchase ADC08060, In-stock ADC08060 From SeekIC.
Part Number: ADC08060
Description: The ADC08060 is a low-power, 8-bit, monolithic analog-to- digital converter with an on-chip track-and-hold circuit. Opt...
- Table of contents:
ADC08060
-
Suppliers
DataSheet
General Description
ADC08060 General Description
The ADC08060 is a low-power, 8-bit, monolithic analog-to- digital converter with an on-chip track-and-hold circuit. Optimized for low cost, low power, small size and ease of use, this product operates at conversion rates of 20 MSPS to 70 MSPS with outstanding dynamic performance over its full operating range while consuming just 1.3 mW per MHz of clock frequency. That's just 78 mW of power at 60 MSPS. Raising the PD pin puts the ADC08060 into a Power Down mode where it consumes just 1 mW.
The unique architecture achieves 7.5 Effective Bits with 25 MHz input frequency. The excellent DC and AC characteristics of this device, together with its low power consumption and single +3V supply operation, make it ideally suited for many imaging and communications applications, including use in portable equipment. Furthermore, the ADC08060 is resistant to latch-up and the outputs are short-circuit proof.The top and bottom of the ADC08060's reference ladder are available for connections, enabling a wide range of input possibilities. The digital outputs are TTL/CMOS compatible with a separate output power supply pin to support interfacing with 3V or 2.5V logic. The digital inputs (CLK and PD) are TTL/CMOS compatible. The ADC08060 is offered in a 24-lead plastic package (TSSOP) and is specified over the industrial temperature range of −40˚C to +85˚C.
ADC08060 Maximum Ratings
Supply Voltage (VA) 3.8V
Driver Supply Voltage (DR VD) VA + 0.3V
Voltage on Any Input or Output Pin −0.3V to VA
Reference Voltage (VRT,VRB) VA to AGND
CLK, OE Voltage Range −0.3V to (VA + 0.3V)
Digital Output Voltage (VOH,VOL) DR GND to DR VD
Input Current at Any Pin (Note 3) ±25 mA
Package Input Current (Note 3) ±50 mA
Power Dissipation at TA = 25˚C See (Note 4)
ESD Susceptibility (Note 5)
Human Body Model 2500V
Machine Model 250V
Driver Supply Voltage (DR VD) VA + 0.3V
Voltage on Any Input or Output Pin −0.3V to VA
Reference Voltage (VRT,VRB) VA to AGND
CLK, OE Voltage Range −0.3V to (VA + 0.3V)
Digital Output Voltage (VOH,VOL) DR GND to DR VD
Input Current at Any Pin (Note 3) ±25 mA
Package Input Current (Note 3) ±50 mA
Power Dissipation at TA = 25˚C See (Note 4)
ESD Susceptibility (Note 5)
Human Body Model 2500V
Machine Model 250V
ADC08060 Features
Single-ended input
Internal sample-and-hold function
Low voltage (single +3V) operation
Small package
Power-down feature
Internal sample-and-hold function
Low voltage (single +3V) operation
Small package
Power-down feature
ADC08060 Typical Application
Digital imaging systems
Communication systems
Portable instrumentation
Viterbi decoders
Set-top boxes
Communication systems
Portable instrumentation
Viterbi decoders
Set-top boxes

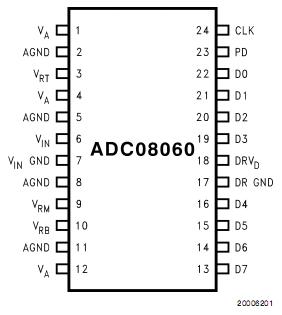

ADC08060 Connection Diagram
ADC08060
PDF/DataSheet Download
- Datasheet: ADC08060
- File Size: 552268 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·ADC0800
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC08004-1CD
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1CN
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1LCD
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1LCN
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC0800PCD
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC0800PD
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC0801
- NSC [National Semiconductor]
- 8-Bit uP Compatible A/D Converters
- 2975740 KB
ADC08060 Relative Products
ADC0805LCN/NOPB
IC ADC 8BIT MPU COMPAT 20-DIP
ADC0805
The ADC0801, ADC0802, ADC0803, ADC0804 and ADC0805 are CMOS 8-bit successive approximation A/D converters that use a differential potentiometricladder-similar to the 256R products. These converters are designed to allow operation with the NSC800 and INS8080A...

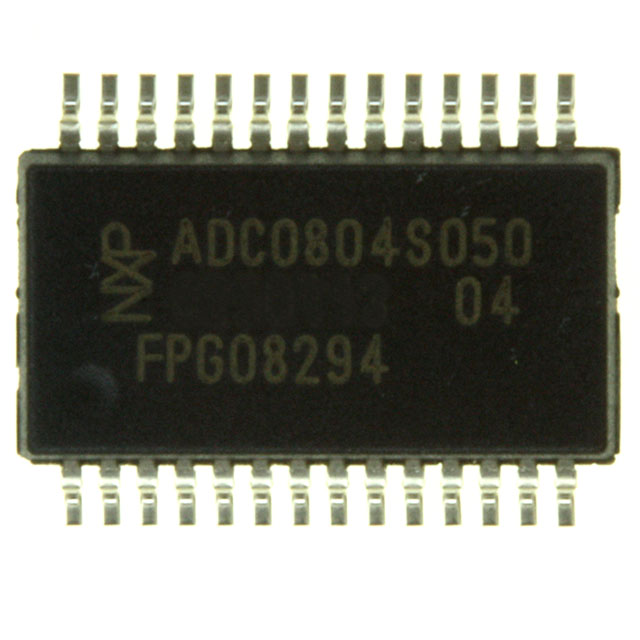

ADC0804S050TS/C1:1
IC ADC 8BIT 50MSPS 28-SSOP

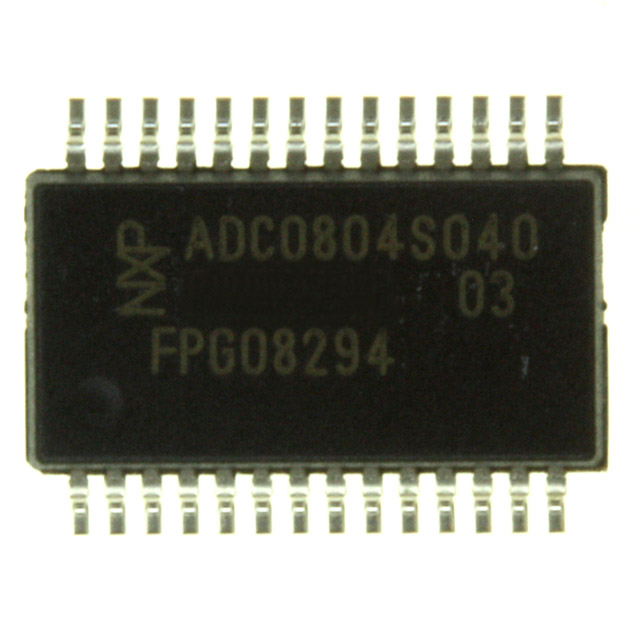

ADC0804S040TS/C1:1
IC ADC 8BIT 40MSPS 28-SSOP

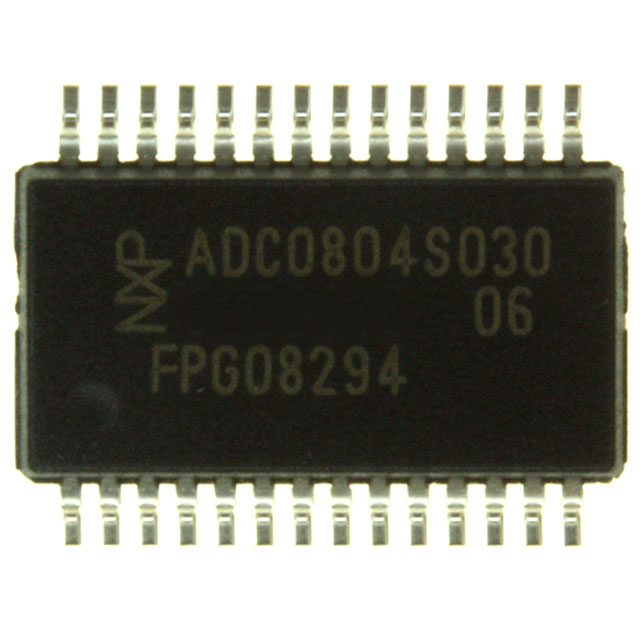

ADC0804S030TS/C1:1
