General Description
ADC081S021 General Description
The ADC081S021 is a low-power, single channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC081S021 is fully specified over a sample rate range of 50 ksps to 200 ksps. The converter is based upon a successiveapproximation register architecture with an internal trackand- hold circuit. The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.
The ADC081S021 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3.6V or +5.25V supply is 1.3 mW and 7.7 mW, respectively.
The power-down feature reduces the power consumption to as low as 2.6 µW using a +5.25V supply. The ADC081S021 is packaged in 6-lead LLP and SOT-23 packages. Operation over the industrial temperature range of −40°C to +85°C is guaranteed.
ADC081S021 Maximum Ratings
Analog Supply Voltage VA .................................................−0.3V to 6.5V
Voltage on Any Analog Pin to GND ..........................−0.3V to (VA +0.3V)
Voltage on Any Digital Pin to GND.................................... −0.3V to 6.5V
Input Current at Any Pin (Note 3)............................................. ±10 mA
Package Input Current (Note 3) ...............................................±20 mA
Power Consumption at TA = 25°C ...................................See (Note 4)
ESD Susceptibility (Note 5)
Human Body Model .................................................................... 3500V
Machine Model ............................................................................ 300V
Junction Temperature ..............................................................+150°C
Storage Temperature ............................................ −65°C to +150°C
Voltage on Any Analog Pin to GND ..........................−0.3V to (VA +0.3V)
Voltage on Any Digital Pin to GND.................................... −0.3V to 6.5V
Input Current at Any Pin (Note 3)............................................. ±10 mA
Package Input Current (Note 3) ...............................................±20 mA
Power Consumption at TA = 25°C ...................................See (Note 4)
ESD Susceptibility (Note 5)
Human Body Model .................................................................... 3500V
Machine Model ............................................................................ 300V
Junction Temperature ..............................................................+150°C
Storage Temperature ............................................ −65°C to +150°C
ADC081S021 Features
· Specified over a range of sample rates.
· 6-lead LLP and SOT-23 packages
· Variable power management
· Single power supply with 2.7V - 5.25V range
· SPI™/QSPI™/MICROWIRE/DSP compatible
· 6-lead LLP and SOT-23 packages
· Variable power management
· Single power supply with 2.7V - 5.25V range
· SPI™/QSPI™/MICROWIRE/DSP compatible
ADC081S021 Typical Application
·Portable Systems
·Remote Data Acquisition
·Instrumentation and Control Systems
·Remote Data Acquisition
·Instrumentation and Control Systems

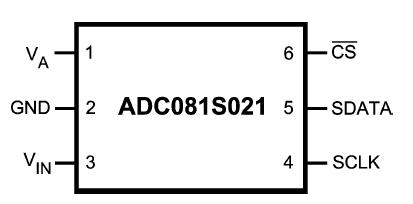

ADC081S021 Connection Diagram
ADC081S021
PDF/DataSheet Download
- Datasheet: ADC081S021
- File Size: 636479 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
