General Description
ADC0832 General Description
The ADC0831 series are 8-bit successive approximation A/D converters with a serial I/O and configurable input multiplexers with up to 8 channels. The serial I/O is configured to comply with the NSC MICROWIRE™ serial data exchange standard for easy interface to the COPS™ family of processors, and can interface with standard shift registers or µPs. The 2-, 4- or 8-channel multiplexers are software configured for single-ended or differential inputs as well as channel assignment.
The differential analog voltage input allows increasing the common-mode rejection and offsetting the analog zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8 bits of resolution.
ADC0832 Maximum Ratings
Current into V+ (Note 3) 15 mA
Supply Voltage, VCC (Note 3) 6.5V
Voltage
Logic Inputs −0.3V to VCC + 0.3V
Analog Inputs −0.3V to VCC + 0.3V
Input Current per Pin (Note 4) ±5mA
Package ±20 mA
Storage Temperature −65˚C to +150˚C
Package Dissipation
at TA=25˚C (Board Mount) 0.8W
Supply Voltage, VCC (Note 3) 6.5V
Voltage
Logic Inputs −0.3V to VCC + 0.3V
Analog Inputs −0.3V to VCC + 0.3V
Input Current per Pin (Note 4) ±5mA
Package ±20 mA
Storage Temperature −65˚C to +150˚C
Package Dissipation
at TA=25˚C (Board Mount) 0.8W
ADC0832 Features
NSC MICROWIRE compatible-direct interface to COPS family processors
Easy interface to all microprocessors, or operates "stand-alone"
Operates ratiometrically or with 5 VDC voltage reference
No zero or full-scale adjust required
2-, 4- or 8-channel multiplexer options with address logic
Shunt regulator allows operation with high voltage supplies
0V to 5V input range with single 5V power supply
Remote operation with serial digital data link
TTL/MOS input/output compatible
0.3" standard width, 8-, 14- or 20-pin DIP package
20 Pin Molded Chip Carrier Package (ADC0838 only)
Surface-Mount Package
Easy interface to all microprocessors, or operates "stand-alone"
Operates ratiometrically or with 5 VDC voltage reference
No zero or full-scale adjust required
2-, 4- or 8-channel multiplexer options with address logic
Shunt regulator allows operation with high voltage supplies
0V to 5V input range with single 5V power supply
Remote operation with serial digital data link
TTL/MOS input/output compatible
0.3" standard width, 8-, 14- or 20-pin DIP package
20 Pin Molded Chip Carrier Package (ADC0838 only)
Surface-Mount Package
ADC0832 Connection Diagram
ADC0832
PDF/DataSheet Download
- Datasheet: ADC0832
- File Size: 694502 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·ADC0800
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC08004-1CD
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1CN
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1LCD
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1LCN
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC0800PCD
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC0800PD
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC0801
- NSC [National Semiconductor]
- 8-Bit uP Compatible A/D Converters
- 2975740 KB
ADC0832 Relative Products

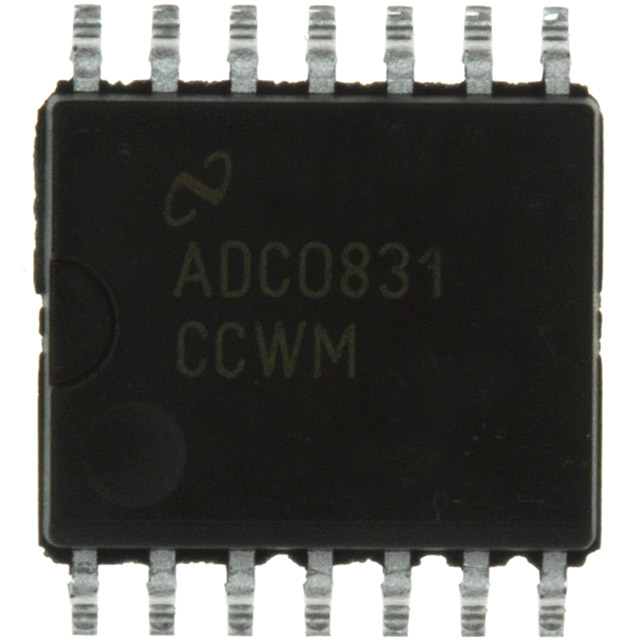

ADC0831CCWMX/NOPB
