Part Number: ADC088S052
Description: The ADC088S052 is a low-power, eight-channel CMOS 8-bit analog-to-digital converter specified for conv...
- Table of contents:
ADC088S052
-
Suppliers
DataSheet
General Description
ADC088S052 General Description
The ADC088S052 is a low-power, eight-channel CMOS 8-bit analog-to-digital converter specified for conversion throughput rates of 200 kSPS to 500 kSPS. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to eight input signals at inputs IN0 through IN7.The output serial data is straight binary and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE ™, and many common DSP serial interfaces.
The ADC088S052 may be operated with independent analog and digital supplies. The analog supply (VA) can range from +2.7V to +5.25V, and the digital supply (VD) can range from +2.7V to VA. Normal power consumption using a +3V or +5V supply is 1.2 mW and 6.5 mW, respectively. The powerdown feature reduces the power consumption to 0.03 W using a +3V supply and 0.15 W using a +5V supply.The ADC088S052 is packaged in a 16-lead TSSOP package.Operation over the extended industrial temperature range of −40°C to +105°C is guaranteed.
ADC088S052 Maximum Ratings
If Military/Aerospace specified devices are required,please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Analog Supply Voltage VA .......................................−0.3V to 6.5V
Digital Supply Voltage VD................ −0.3V to VA + 0.3V,max 6.5V
Voltage on Any Pin to GND ..............................−0.3V to VA +0.3V
Input Current at Any Pin (Note 3) ...................................±10 mA
Package Input Current(Note 3) .......................................±20 mA
Power Dissipation at TA = 25°C.............................. See (Note 4)
ESD Susceptibility (Note 5)
Human Body Model............................................................. 2500V
Machine Model.......................................................................250V
Soldering Temperature, Infrared,10 seconds (Note 6) .......260°C
Junction Temperature .......................................................+150°C
Storage Temperature ......................................−65°C to +150°C
ADC088S052 Features
· Eight input channels
· Variable power management
· Independent analog and digital supplies
· SPI/QSPI/MICROWIRE/DSP compatible
· Packaged in 16-lead TSSOP
· Variable power management
· Independent analog and digital supplies
· SPI/QSPI/MICROWIRE/DSP compatible
· Packaged in 16-lead TSSOP
ADC088S052 Typical Application
· Automotive Navigation
· Portable Systems
· Medical Instruments
· Mobile Communications
· Instrumentation and Control Systems
· Portable Systems
· Medical Instruments
· Mobile Communications
· Instrumentation and Control Systems

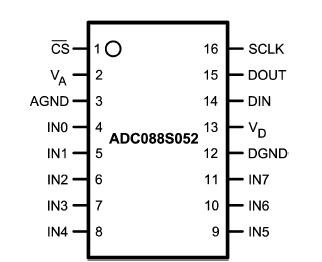

ADC088S052 Connection Diagram
ADC088S052
PDF/DataSheet Download
- Datasheet: ADC088S052
- File Size: 848452 KB
- Manufacturer: NATIONAL
- Click here to Download
- ·ADC0800
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC08004-1CD
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1CN
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1LCD
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1LCN
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC0800PCD
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC0800PD
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC0801
- NSC [National Semiconductor]
- 8-Bit uP Compatible A/D Converters
- 2975740 KB
ADC088S052 Relative Products
ADC088S022CIMTX/NOPB
ADC 8BIT 8CH 50-200KSPS 16-TSSOP
ADC088S022
The ADC088S022 is a low-power, eight-channel CMOS 8-bit analog-to-digital converter specified for conversion throughput rates of 50 kSPS to 200 kSPS. The converter is based on a successive-approximation register architecture with an internal track-and-hold c...
ADC08832IMM/NOPB
IC ADC 8BIT SERIAL I/O 8-MSOP
ADC08832
The ADC08831/ADC08832 are 8-bit successive approximation Analog to Digital converters with 3-wire serial interfaces and a configurable input multiplexer for 2 channels. The serial I/O will interface to COPS™family of micro-controllers, PLD's, microproc...
ADC08831IN
The ADC08831IN is designed as one kind of 8-bit serial I/O CMOS A/D converters with multiplexer and sample/hold function that can be used in (1)digitizing sensors and waveforms; (2)process control monitoring; (3)remote sensing in noisy environments; (4)instr...

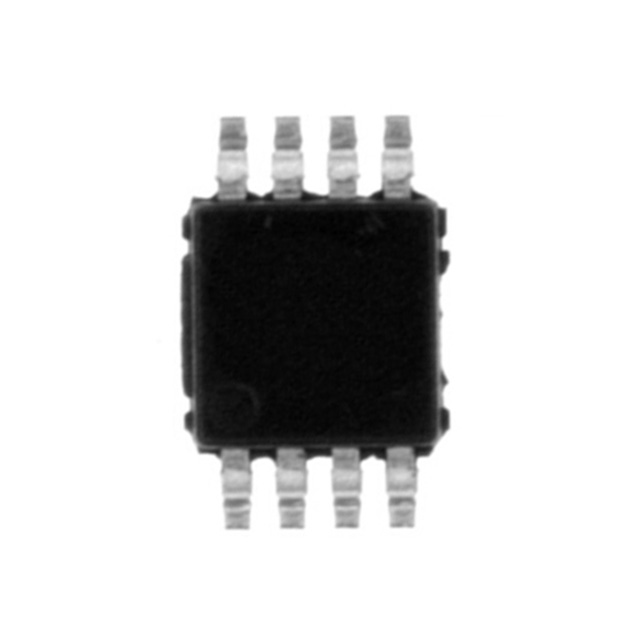

ADC08831IMM/NOPB
