Purchase ADD8505, In-stock ADD8505 From SeekIC.
MFG:ADI D/C:09
Part Number: ADD8505
MFG: ADI
D/C: 09
Description: The ADD8504, ADD8505, and ADD8506 are 4-, 5-, and 6-channel LCD gamma reference buffers designed to dr...
- Table of contents:
ADD8505
-
Suppliers
DataSheet
General Description
ADD8505 General Description
The ADD8504, ADD8505, and ADD8506 are 4-, 5-, and 6-channel LCD gamma reference buffers designed to drive column driver gamma inputs in line inversion panels. Each buffer channel has an A/B input to select between two gamma voltage curves. These buffer channels drive the resistor ladders of LCD column drivers for gamma correction. The ADD8504/ADD8505/ADD8506 outputs have high slew rates and output drives that increase the stability of the reference ladder, resulting in optimal gray scale and visual performance.
The ADD8504/ADD8505/ADD8506 are specified over the −40°C to +105°C temperature range. They are available, respectively, in 16-, 20-, and 24-lead thin shrink small outline (TSSOP), surface-mount, Pb-free packages.
ADD8505 Maximum Ratings
| Parameter | Rating |
| Supply Voltage Input Voltage Storage Temperature Range Junction Temperature Range Lead Temperature (Soldering, 60 sec) |
7 V GND to VCC −65°C to +150°C −65°C to +150°C 300°C |
ADD8505 Features
Single-supply operation: 3.3 V to 6.5 V
Rail-to-rail input, rail-to-rail output
High output current: 380 mA
Low supply current: 3.9 mA
Stable with 1 nF loads
Wide temperature range: −40°C to +105°C
16-, 20-, and 24-lead, Pb-free, TSSOP packages
Rail-to-rail input, rail-to-rail output
High output current: 380 mA
Low supply current: 3.9 mA
Stable with 1 nF loads
Wide temperature range: −40°C to +105°C
16-, 20-, and 24-lead, Pb-free, TSSOP packages
ADD8505 Typical Application
LCD line inversion gamma references
Car navigation panels
Personal media player panels
Car navigation panels
Personal media player panels

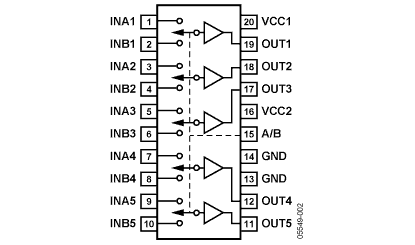

ADD8505 Connection Diagram
ADD8505
