ADD8608A8A

Features:

•2.5V for VDDQ power supply
•SSTL_2 interface
•MRS Cycle with address key programs
-CAS Latency (2, 2.5)
-Burst Length (2,4 &8)
-Burst Type (sequential & Interleave)
•4 banks operation
•Differential clock input (CK, /CK) operation
•Double data rate interface
•Auto & Self refresh
•8192 refresh cycle
•DQM for masking
•Package:66-pins 400 mil TSOP-Type II

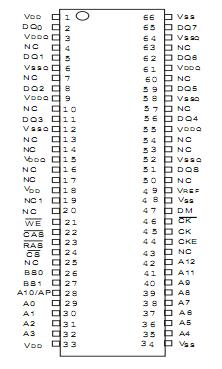

Pinout




Specifications

Voltage on any pin relative to Vss                           V_IN, V_out                       -0.5 ~ 3.6              V
Voltage on VDD supply relative to Vss                     V_DD, V_DDQ                     -1.0 ~ 3.6             V
Storage temperature                                              TSTG                               -55 ~ +150
Power dissipation                                                    PD                                  1.5                        W
Short circuit current                                                 IOUT                               50                       mA


Description

The ADD8608A8A are four-bank Double Data Rate(DDR) Synchronous DRAMs organized as  8,392,608 words x 8 bits x 4 banks,  Synchronous design allows precise cycle control  with the use of system clock I/O transactions are  possible on every clock cycle.    Data outputs occur at both rising edges of CK and  /CK.

Range of operating frequencies, programmable  burst length and programmable latencies allow the  same device to be useful for a variety of high  bandwidth high performance memory system  applications
