Part Number: ADD8704



MFG: ADI



D/C: 09

Description: The ADD8704 is a single-supply quad operational amplifier that has been optimized for today' s low cost TFT LCD n...


Urgent Purchase

ADD8704 General Description


The ADD8704 is a single-supply quad operational amplifier that  has been optimized for today' s low cost TFT LCD notebook and  monitor panels. Output channels A and D swing to the rail for  use as end-point gamma references. Output channels B and C  provide high continuous and peak current drive for use as VCOM  or repair amplifiers; they can also be used as midpoint gamma  references. All four amplifiers have excellent transient response  and have high slew rate and capacitive load drive capability. The  ADD8704 is specified over the 40°C to +85°C temperature  range and is available in either a 14-lead TSSOP or a 16-lead  LFCSP package for thin, portable applications.

ADD8704 Maximum Ratings

Supply Voltage (VS)                                                            18 V
Input Voltage                                             0.5 V to VS + 0.5 V
Differential Input Voltage                                                       VS
Storage Temperature Range                         65°C to +150°C
Operating Temperature Range                        40°C to +85°C
Junction Temperature Range                         65°C to +150°C
Lead Temperature Range                                               300°C
ESD Tolerance (HBM)                                                   ±1500 V
ESD Tolerance (MM)                                                         175 V

ADD8704 Features

Single-supply operation: 4.5 V to 16.5 V
Upper/lower buffers swing to VDD/GND
Continuous output current: 35 mA
VCOM peak output current: 250 mA
Offset voltage: 15 mV
Slew rate: 6 V/µs
Unity gain stable with large capacitive loads
Supply current: 700 µA per amplifier
Drop-in replacement for EL5420

ADD8704 Typical Application

TFT LCD monitor panels
TFT LCD notebook panels
Communications equipment
Portable instrumentation
Electronic games

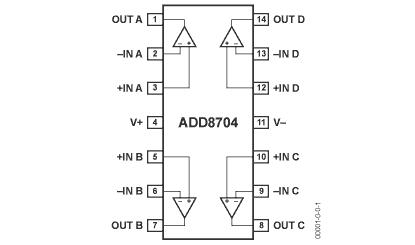

ADD8704 Connection Diagram

ADD8704 Connection Diagram
