ADD8710
-
Suppliers
DataSheet
General Description
ADD8710 General Description
The ADD8710 is a low cost, 10-channel gamma buffer with a VCOM driver that operates from a single supply. The part is designed for high resolution TFT LCD panels and is built on an advanced, high voltage CBCMOS process.
The gamma buffers have a high slew rate, minimum 10 mA output current, and a high capacitive load drive capability. The VCOM buffer is capable of delivering 250 mA of peak current and can also drive large capacitive loads. The ADD8710 offers wide supply range and offset voltages below 12 mV.
The ADD8710 is specified over the −40°C to +85°C temperature range and is available in a Pb-free, 28-lead TSSOP package.
ADD8710 Maximum Ratings
| Parameter | Rating |
| Supply Voltage (VS) Input Voltage Storage Temperature Range Operating Temperature Range Junction Temperature Range Lead Temperature Range ESD Tolerance (HBM) ESD Tolerance (MM) |
18.5 V −0.5 V to VS + 0.5 V −65°C to +150°C −40°C to +85°C −65°C to +150°C 300°C ±2500 V ±200 V |
ADD8710 Features
Single-supply operation: 4.5 V to 18 V
Upper/lower buffers swing to VS/GND
Gamma continuous output current: >10 mA
VCOM peak output current: 250 mA
Offset voltage: 12 mV
Slew rate: 8 V/µs
Unity gain stable with large capacitive loads
Supply current: 700 µA per amplifier
Compact 28-lead TSSOP
Pb-free package
Drop-in replacement for BUF11702
Upper/lower buffers swing to VS/GND
Gamma continuous output current: >10 mA
VCOM peak output current: 250 mA
Offset voltage: 12 mV
Slew rate: 8 V/µs
Unity gain stable with large capacitive loads
Supply current: 700 µA per amplifier
Compact 28-lead TSSOP
Pb-free package
Drop-in replacement for BUF11702
ADD8710 Typical Application
TFT LCD monitor panels
TFT LCD notebook panels
TFT LCD notebook panels

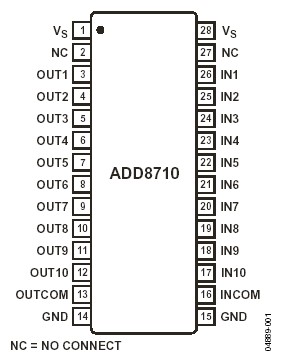

ADD8710 Connection Diagram
ADD8710
