Purchase ADE7758, In-stock ADE7758 From SeekIC.
MFG:ADI D/C:09
Part Number: ADE7758
MFG: ADI
D/C: 09
Description: The ADE77581is a high accuracy 3-phase electrical energymeasurement IC with a serial interface a...
- Table of contents:
ADE7758
-
Suppliers
DataSheet
General Description
ADE7758 General Description

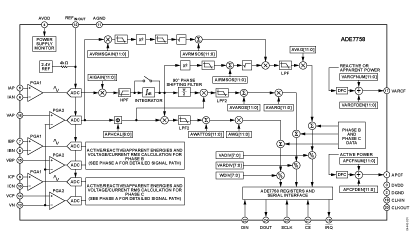

The ADE77581 is a high accuracy 3-phase electrical energy measurement IC with a serial interface and two pulse outputs. The ADE7758 incorporates second-order -∆ ADCs, a digital integrator, reference circuitry, temperature sensor, and all the signal processing required to perform active, reactive, and apparent energy measurement and rms calculations.
The ADE7758 is suitable to measure active, reactive, and apparent energy in various 3-phase configurations, such as WYE or DELTA services, both with three or four wires. The ADE7758 provides system calibration features for each phase, i.e., rms offset correction, phase calibration, and power calibration. The APCF logic output gives active power information, and the VARCF logic output provides instantaneous reactive or apparent power information.
ADE7758 Maximum Ratings
AVDD to AGND 0.3 V to +7 V
DVDD to DGND 0.3 V to +7 V
DVDD to AVDD 0.3 V to +0.3 V
Analog Input Voltage to AGND,
IAP, IAN, IBP, IBN, ICP, ICN, VAP, 6 V to +6 V
VBP, VCP, VN
Reference Input Voltage to AGND 0.3 V to AVDD + 0.3 V
Digital Input Voltage to DGND 0.3 V to DVDD + 0.3 V
Digital Output Voltage to DGND 0.3 V to DVDD + 0.3 V
Operating Temperature Range
Industrial 40°C to +85°C
Storage Temperature Range 65°C to +150°C
Junction Temperature 150°C
24-Lead SOIC, Power Dissipation 88 mW
JA Thermal Impedance 53°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) 215°C
Infrared (15 sec) 220°C
DVDD to DGND 0.3 V to +7 V
DVDD to AVDD 0.3 V to +0.3 V
Analog Input Voltage to AGND,
IAP, IAN, IBP, IBN, ICP, ICN, VAP, 6 V to +6 V
VBP, VCP, VN
Reference Input Voltage to AGND 0.3 V to AVDD + 0.3 V
Digital Input Voltage to DGND 0.3 V to DVDD + 0.3 V
Digital Output Voltage to DGND 0.3 V to DVDD + 0.3 V
Operating Temperature Range
Industrial 40°C to +85°C
Storage Temperature Range 65°C to +150°C
Junction Temperature 150°C
24-Lead SOIC, Power Dissipation 88 mW
JA Thermal Impedance 53°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) 215°C
Infrared (15 sec) 220°C
ADE7758 Features
High accuracy, supports IEC 60687, IEC 61036, IEC 61268, IEC 62053-21, IEC 62053-22, and IEC 62053-23
Compatible with 3-phase/3-wire, 3-phase/4-wire, and other 3-phase services
Less than 0.1% active energy error over a dynamic range of 1000 to 1 at 25°C
Supplies active/reactive/apparent energy, voltage rms, current rms, and sampled waveform data
Two pulse outputs, one for active power and the other selectable between reactive and apparent power with programmable frequency
Digital power, phase, and rms offset calibration
On-chip user programmable thresholds for line voltage SAG and overvoltage detections
On-chip digital integrator enables direct interface-to-current sensors with di/dt output
A PGA in the current channel allows direct interface to shunts and current transformers
Compatible with 3-phase/3-wire, 3-phase/4-wire, and other 3-phase services
Less than 0.1% active energy error over a dynamic range of 1000 to 1 at 25°C
Supplies active/reactive/apparent energy, voltage rms, current rms, and sampled waveform data
Two pulse outputs, one for active power and the other selectable between reactive and apparent power with programmable frequency
Digital power, phase, and rms offset calibration
On-chip user programmable thresholds for line voltage SAG and overvoltage detections
On-chip digital integrator enables direct interface-to-current sensors with di/dt output
A PGA in the current channel allows direct interface to shunts and current transformers

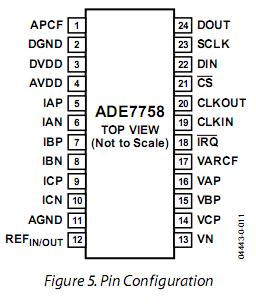

ADE7758 Connection Diagram
ADE7758
PDF/DataSheet Download
- Datasheet: ADE7758
- File Size: 1622594 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
