Purchase ADF4111, In-stock ADF4111 From SeekIC.
MFG:ADI D/C:09
Part Number: ADF4111
MFG: ADI
D/C: 09
Description: The ADF4110 family of frequency synthesizers can be used to implement local oscillators in the upconversion and downcon...
- Table of contents:
ADF4111
-
Suppliers
DataSheet
General Description
ADF4111 General Description
The ADF4110 family of frequency synthesizers can be used to implement local oscillators in the upconversion and downconversion sections of wireless receivers and transmitters. They consist of a low-noise digital PFD (Phase Frequency Detector), a precision charge pump, a programmable reference divider,
programmable A and B counters and a dual-modulus prescaler (P/P+1). The A (6-bit) and B (13-bit) counters, in conjunction with the dual modulus prescaler (P/P+1), implement an N divider (N = BP + A). In addition, the 14-bit reference counter (R Counter), allows selectable REFIN frequencies at the PFD input. A complete PLL (Phase-Locked Loop) can be implemented if the synthesizer is used with an external loop filter and VCO (Voltage Controlled Oscillator).
ADF4111 Maximum Ratings
AVDD to GND3 . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
AVDD to DVDD . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +0.3 V
VP to GND . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to +7 V
VP to AVDD . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +5.5 V
Digital I/O Voltage to GND . . . . . . . . 0.3 V to VDD + 0.3 V
Analog I/O Voltage to GND . . . . . . . . . 0.3 V to VP + 0.3 V
REFIN, RFINA, RFINB to GND . . . . . . 0.3 V to VDD + 0.3 V
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . 65°C to +150°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . 150°C
TSSOP JA Thermal Impedance . . . . . . . . . . . . . 150.4°C/W
CSP JA Thermal Impedance (Paddle Soldered) . . 122°C/W
AVDD to DVDD . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +0.3 V
VP to GND . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to +7 V
VP to AVDD . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +5.5 V
Digital I/O Voltage to GND . . . . . . . . 0.3 V to VDD + 0.3 V
Analog I/O Voltage to GND . . . . . . . . . 0.3 V to VP + 0.3 V
REFIN, RFINA, RFINB to GND . . . . . . 0.3 V to VDD + 0.3 V
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . 65°C to +150°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . 150°C
TSSOP JA Thermal Impedance . . . . . . . . . . . . . 150.4°C/W
CSP JA Thermal Impedance (Paddle Soldered) . . 122°C/W
ADF4111 Features
ADF4110: 550 MHz
ADF4111: 1.2 GHz
ADF4112: 3.0 GHz
ADF4113: 4.0 GHz
2.7 V to 5.5 V Power Supply
Separate Charge Pump Supply (VP) Allows Extended Tuning Voltage in 3 V Systems
Programmable Dual Modulus Prescaler 8/9, 16/17, 32/33, 64/65
Programmable Charge Pump Currents
Programmable Antibacklash Pulsewidth
3-Wire Serial Interface
Analog and Digital Lock Detect
Hardware and Software Power-Down Mode
ADF4111: 1.2 GHz
ADF4112: 3.0 GHz
ADF4113: 4.0 GHz
2.7 V to 5.5 V Power Supply
Separate Charge Pump Supply (VP) Allows Extended Tuning Voltage in 3 V Systems
Programmable Dual Modulus Prescaler 8/9, 16/17, 32/33, 64/65
Programmable Charge Pump Currents
Programmable Antibacklash Pulsewidth
3-Wire Serial Interface
Analog and Digital Lock Detect
Hardware and Software Power-Down Mode
ADF4111 Typical Application
Base Stations for Wireless Radio (GSM, PCS, DCS,CDMA, WCDMA)
Wireless Handsets (GSM, PCS, DCS, CDMA, WCDMA)
Wireless LANS
Communications Test Equipment
CATV Equipment
Wireless Handsets (GSM, PCS, DCS, CDMA, WCDMA)
Wireless LANS
Communications Test Equipment
CATV Equipment

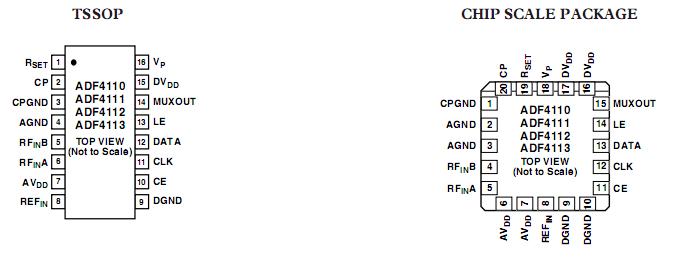

ADF4111 Connection Diagram
ADF4111
PDF/DataSheet Download
- Datasheet: ADF4111
- File Size: 270047 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
