Part Number: ADF4360-8
MFG: ADI
D/C: 09
Description: The ADF4360-8 is an integrated integer-N synthesizer andvoltage controlled oscillator (VCO). The ADF4360-8 ...
- Table of contents:
ADF4360-8
-
Suppliers
DataSheet
General Description
ADF4360-8 General Description
The ADF4360-8 is an integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-8 center frequency is set by external inductors. This allows a frequency range of between 65 MHz to 400 MHz. Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.
ADF4360-8 Maximum Ratings
AVDD to GND1 −0.3 V to +3.9 V
AVDD to DVDD −0.3 V to +0.3 V
VVCO to GND −0.3 V to +3.9 V
VVCO to AVDD −0.3 V to +0.3 V
Digital I/O Voltage to GND −0.3 V to VDD + 0.3 V
Analog I/O Voltage to GND −0.3 V to VDD + 0.3 V
REFIN to GND −0.3 V to VDD + 0.3 V
Operating Temperature Range −40°C to + 85°C
Storage Temperature Range −65°C to +150°C
Maximum Junction Temperature 150°C
CSP JA Thermal Impedance
Paddle Soldered 50°C/W
Paddle Not Soldered 88°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) 215°C
Infrared (15 sec) 220°C
AVDD to DVDD −0.3 V to +0.3 V
VVCO to GND −0.3 V to +3.9 V
VVCO to AVDD −0.3 V to +0.3 V
Digital I/O Voltage to GND −0.3 V to VDD + 0.3 V
Analog I/O Voltage to GND −0.3 V to VDD + 0.3 V
REFIN to GND −0.3 V to VDD + 0.3 V
Operating Temperature Range −40°C to + 85°C
Storage Temperature Range −65°C to +150°C
Maximum Junction Temperature 150°C
CSP JA Thermal Impedance
Paddle Soldered 50°C/W
Paddle Not Soldered 88°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) 215°C
Infrared (15 sec) 220°C
ADF4360-8 Features
Output frequency range: 65 MHz to 400 MHz
3.0 V to 3.6 V power supply
1.8 V logic compatibility
Integer-N synthesizer
Programmable output power level
3-wire serial interface
Digital lock detect
Hardware and software power-down mode
3.0 V to 3.6 V power supply
1.8 V logic compatibility
Integer-N synthesizer
Programmable output power level
3-wire serial interface
Digital lock detect
Hardware and software power-down mode
ADF4360-8 Typical Application
System clock generation
Test equipment
Wireless LANs
CATV equipment
Test equipment
Wireless LANs
CATV equipment

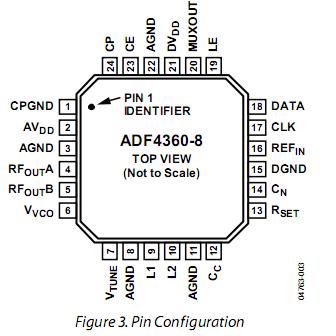

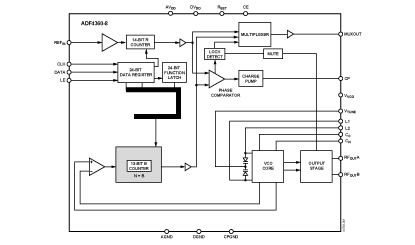

ADF4360-8 Connection Diagram
ADF4360-8
