Description: The ADF4360 family is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO)...

ADF4360 General Description

The ADF4360 family is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO). The user has the choice of seven output frequency ranges; the ADF4360-1 is designed for a center frequency of 2400MHz, the ADF4360-2 for 2000MHz, the ADF4360- 3 for 1800 MHz, the ADF4360-4 for 1600MHz, the ADF4360-5 for 1300MHz and the ADF4360-6 for 1150 MHz. The ADF4360-7 center frequency is set by external inductors.

In addition, there is a divide-by-2 option available, whereby the user gets an RF output center frequency of either 1200MHz (ADF4360-1), 1000MHz (ADF4360-2), 900 MHz (ADF4360-3) etc.

Control of all the on-chip registers is via a simple 3-wire interface. The device operates with a power supply ranging from 2.7V to 3.3V and can be powered down when not in use.

ADF4360 Maximum Ratings

AV_DD to G_ND3........................................0.3 V to+3.6 V
AV_DD to DV_DD .......................................0.3 V to +0.3V
VP to G_ND.............................................0.3 V to +3.6 V
VV_CO to G_ND........................................0.3 V to +3.6 V
VV_CO to AV_DD .....................................0.3 V to +0.3 V
Digital I/O Voltage to G_ND...........0.3 V to VDD + 0.3 V
Analog I/O Voltage to G_ND......... 0.3 V to VDD + 0.3 V
REFIN, to G_ND............................ 0.3 V to VDD + 0.3 V
OperatingTemperature Range
Industrial (B Version)......................... 40°C to +85°C
Maximum Junction Temperature.......................+150°C
CSP JA Thermal Impedance
(Paddle Soldered)............................................50°C/W
(Paddle Not Soldered)......................................88°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec).......................................+215°C
Infrared (15 sec)...............................................+220°C
1. Stresses above those listed under "Absolute Maximum Ratings" may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those listed in the operational sections
of this specification is not implied. Exposure to absolute maximum rating conditions
for extended periods may affect device reliability.
2. This device is a high-performance RF integrated circuit with an ESD rating of <
2kV and it is ESD sensitive. Proper precautions should be taken for handling and
assembly.
3. GND = AGND = DGND = 0V

ADF4360 Features

· Six Output Ranges: 2000 MHz to 2550 MHz
· 1700 MHz to 2150 MHz
· 1600 MHz to 1950 MHz
· 1400 MHz to 1800 MHz
· 1150 MHz to 1400 MHz
· 1000 MHz to 1250 MHz
· External L for Lower Frequencies
· Divide-by-2 output
· +2.7 V to +3.3V Power Supply
· 1.8 V Logic Compatibility
· Integer-N Synthesizer
· Programmable Dual Modulus Prescaler
· 8/9, 16/17, 32/33
· Programmable Output Power Level
· Programmable Core Power Level
· 3-Wire Serial Interface
· Analog and Digital Lock Detect
· Hardware and Software Power Down Mode

ADF4360 Typical Application

Wireless Handsets (DECT, GSM, PCS, DCS, WCDMA)
Test Equipment
Wireless LANS
CATV Equipment

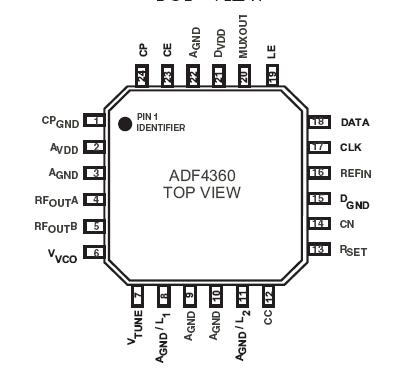

ADF4360 Connection Diagram

ADF4360 datasheet

ADF4360
PDF/DataSheet Download

Datasheet: ADF4360
File Size: 607286 KB
Manufacturer:
Click here to Download
