General Description
ADF7020 General Description
The ADF7020 is a low power, highly integrated FSK/GFSK/ASK/OOK/GASK transceiver designed for operation in the license-free ISM bands at 433 MHz, 868 MHz, and 915 MHz. It is suitable for circuit applications that meet either the European ETSI-300-220 or the North American FCC (Part 15) regulatory standards. A complete transceiver can be built using a small number of external discrete components, making the ADF7020 very suitable for price-sensitive and area-sensitive applications.
The transmit section contains a VCO and low noise fractional-N PLL with output resolution of <1 ppm. The VCO operates at twice the fundamental frequency to reduce spurious emissions and frequency pulling problems. The transmitter output power is programmable in 0.3 dB steps from −16 dBm to +13 dBm. The transceiver RF frequency, channel spacing, and modulation are programmable using a simple 3-wire interface. The device operates with a power supply range of 2.3 V to 3.6 V and can be powered down when not in use.
ADF7020 Maximum Ratings
VDD to GND1 −0.3 V to +5 V
Analog I/O Voltage to GND −0.3 V to AVDD + 0.3 V
Digital I/O Voltage to GND −0.3 V to DVDD + 0.3 V
Operating Temperature Range
Industrial (B Version) −40°C to +85°C
Storage Temperature Range −65°C to +125°C
Maximum Junction Temperature 125°C
MLF JA Thermal Impedance TBD°C/W
Lead Temperature Soldering
Vapor Phase (60 s) 235°C
Infrared (15 s) 240°C
Analog I/O Voltage to GND −0.3 V to AVDD + 0.3 V
Digital I/O Voltage to GND −0.3 V to DVDD + 0.3 V
Operating Temperature Range
Industrial (B Version) −40°C to +85°C
Storage Temperature Range −65°C to +125°C
Maximum Junction Temperature 125°C
MLF JA Thermal Impedance TBD°C/W
Lead Temperature Soldering
Vapor Phase (60 s) 235°C
Infrared (15 s) 240°C
ADF7020 Features
Low power, low IF transceiver
Frequency bands:
433 MHz to 464 MHz
862 MHz to 928 MHz
Data rates supported:
0.3 kbps to 200 kbps, FSK
0.3 kbps to 64 kbps, ASK
2.3 V to 3.6 V power supply
Programmable output power:
−16 dBm to +13 dBm in 0.3 dBm steps
Receiver sensitivity:
−117.5 dBm at 1 kbps, FSK
−110.5 dBm at 9.6 kbps, FSK
−106.5 dBm at 9.6 kbps, ASK
Low power consumption:
19 mA in receive mode
22 mA in transmit mode (10 dBm output)
Frequency bands:
433 MHz to 464 MHz
862 MHz to 928 MHz
Data rates supported:
0.3 kbps to 200 kbps, FSK
0.3 kbps to 64 kbps, ASK
2.3 V to 3.6 V power supply
Programmable output power:
−16 dBm to +13 dBm in 0.3 dBm steps
Receiver sensitivity:
−117.5 dBm at 1 kbps, FSK
−110.5 dBm at 9.6 kbps, FSK
−106.5 dBm at 9.6 kbps, ASK
Low power consumption:
19 mA in receive mode
22 mA in transmit mode (10 dBm output)
ADF7020 Typical Application
Low cost wireless data transfer
Remote control/security systems
Wireless metering
Keyless entry
Home automation
Process and building control
Wireless voice
Remote control/security systems
Wireless metering
Keyless entry
Home automation
Process and building control
Wireless voice

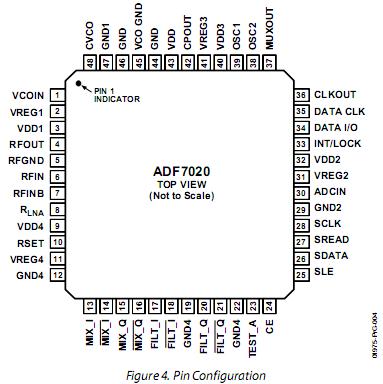

ADF7020 Connection Diagram
ADF7020
PDF/DataSheet Download
- Datasheet: ADF7020
- File Size: 816933 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
