Purchase ADG3123, In-stock ADG3123 From SeekIC.
MFG:ADI D/C:09
Part Number: ADG3123
MFG: ADI
D/C: 09
Description: The ADG3123 is an 8-channel, noninverting CMOS to high voltage level translator. Fabricated on an enhanced LC2MOS process, t...
- Table of contents:
ADG3123
-
Suppliers
DataSheet
General Description
ADG3123 General Description
The ADG3123 is an 8-channel, noninverting CMOS to high voltage level translator. Fabricated on an enhanced LC
ADG3123 Maximum Ratings
| Data Rate (typ) | 100kbps |
| t Prop Delay (typ) | 80ns |
| Bus Enable Time (typ) | n/a |
| VCC 1 (V) | Single(+25 to +30) |
| ICC2 (Max) | 1A |
| Pkg | TSSOP |
| Temp Range (°C) | -40 to 85 |
| Vcc 2 (V) | -5V to -10V |
| Bus Width | 8 |

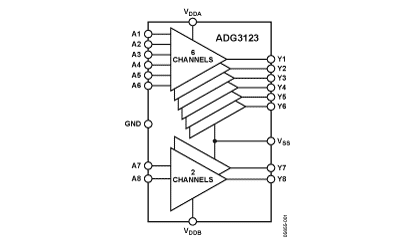

ADG3123 Connection Diagram
