Part Number: ADG3233*
Description: The ADG3233 is a bypass switch designed on a submicron process that operates from supplies as low as 1.65 V. The device...
- Table of contents:
ADG3233*
-
Suppliers
DataSheet
General Description
ADG3233* General Description
The ADG3233 is a bypass switch designed on a submicron process that operates from supplies as low as 1.65 V. The device is guaranteed for operation over the supply range 1.65 V to 3.6 V. It operates from two supply voltages, allowing bidirectional level translation, i.e., it translates low voltages to higher voltages and vice versa. The signal path is unidirectional, meaning data may only flow from A to Y.
This type of device may be used in applications that require a bypassing function. It is ideally suited to bypassing devices in a JTAG chain or in a daisy-chain loop. One switch could be used for each device or a number of devices, thus allowing easy bypassing of one or more devices in a chain. This may be particularly useful in reducing the time overhead in testing devices in the JTAG chain or in daisy-chain applications where the user does not wish to change the settings of a particular device. The bypass switch is packaged in two of the smallest footprints available for its required pin count.
ADG3233* Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +4.6 V
Digital Inputs to GND . . . . . . . . . . . . . . . . . . 0.3 V to +4.6 V
A2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to VCC1 + 0.3V
DC Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mA
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Digital Inputs to GND . . . . . . . . . . . . . . . . . . 0.3 V to +4.6 V
A2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to VCC1 + 0.3V
DC Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mA
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . 150°C
ADG3233* Features
Operates from 1.65 V to 3.6 V Supply Rails
Bidirectional Level Translation, Unidirectional Signal Path
8-Lead SOT-23 and MSOP Packages
Bypass or Normal Operation
Short Circuit Protection
Bidirectional Level Translation, Unidirectional Signal Path
8-Lead SOT-23 and MSOP Packages
Bypass or Normal Operation
Short Circuit Protection
ADG3233* Typical Application
JTAG Chain Bypassing
Daisy-Chain Bypassing
Digital Switching
Daisy-Chain Bypassing
Digital Switching

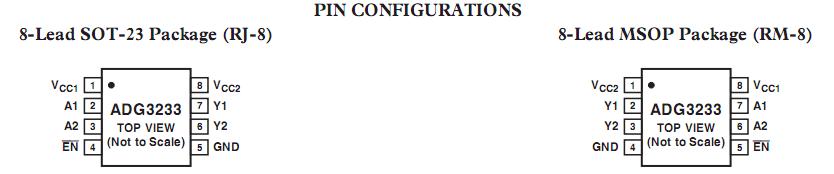

ADG3233* Connection Diagram
