Part Number: ADG3301



MFG: ADI



D/C: 09

Description: The ADG3301 is a single channel bidirectional logic leveltranslator. It can be used in multivoltage digital systemapplications such as dat...


Urgent Purchase

ADG3301 General Description


The ADG3301 is a single channel bidirectional logic leveltranslator. It can be used in multivoltage digital systemapplications such as data transfer between a low voltageDSP/controller and a higher

ADG3301 Maximum Ratings

Data Rate (typ) 50Mbps
t Prop Delay (typ) 6ns
Bus Enable Time (typ) 1s
VCC 1 (V) 1.15 - 5.5
ICC2 1A
Pkg SC70
Temp Range (°C) -40 to 85
Vcc 2 (V) 1.65V - 5.5V
Bus Width 1

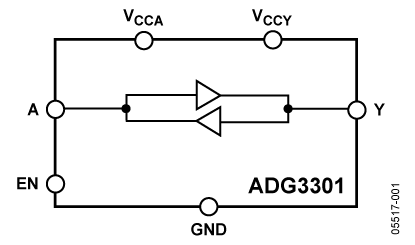

ADG3301 Connection Diagram

ADG3301 Connection Diagram
