Purchase ADG3304, In-stock ADG3304 From SeekIC.
MFG:ADI D/C:09
Part Number: ADG3304
MFG: ADI
D/C: 09
Description: The ADG3304 is a bidirectional logic level translator that con-tains four bidirectional channels. It c...
- Table of contents:
ADG3304
-
Suppliers
DataSheet
General Description
ADG3304 General Description
The ADG3304 is a bidirectional logic level translator that con-tains four bidirectional channels. It can be used in multivoltage digital system applications, such as data transfer, between a low voltage digital signal processing controller and a higher voltage device using SPI and MICROWIRE interfaces. The internal architecture allows the device to perform bidirectional logic level translation without an additional signal to set the direction in which the translation takes place.
The voltage applied to VCCA sets the logic levels on the A side of the device, while VCCY sets the levels on the Y side. For proper operation, VCCA must always be less than VCCY. The VCCA-com-patible logic signals applied to the A side of the device appear as VCCY-compatible levels on the Y side. Similarly, VCCY-compatible logic levels applied to the Y side of the device appear as VCCA-compatible logic levels on the A side.
ADG3304 Maximum Ratings
| Parameter | Rating |
| VCCA to GND VCCY to GND Digital Inputs (A) Digital Inputs (Y) EN to GND Operating Temperature Range Extended Industrial (B Version) TSSOP and LFCSP Industrial (B Version) WLCSP Storage Temperature Range Junction Temperature JA Thermal Impedance (4-Layer Board) 14-Lead TSSOP 12-Ball WLCSP 20-Lead LFCSP Lead Temperature, Soldering (10 sec) IR Reflow, Peak Temperature (<20 sec) |
−0.3 V to +7 V |
ADG3304 Features
Bidirectional level translation
Operates from 1.15 V to 5.5 V
Low quiescent current < 5 A
No direction pin
Operates from 1.15 V to 5.5 V
Low quiescent current < 5 A
No direction pin
ADG3304 Typical Application
SPI®, MICROWIRE™ level translation
Low voltage ASIC level translation
Smart card readers
Cell phones and cell phone cradles
Portable communications devices
Telecommunications equipment
Network switches and routers
Storage systems (SAN/NAS)
Computing/server applications
GPS
Portable POS systems
Low cost serial interfaces
Low voltage ASIC level translation
Smart card readers
Cell phones and cell phone cradles
Portable communications devices
Telecommunications equipment
Network switches and routers
Storage systems (SAN/NAS)
Computing/server applications
GPS
Portable POS systems
Low cost serial interfaces

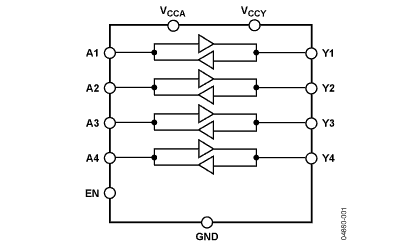

ADG3304 Connection Diagram
ADG3304
