ADG413

Features:

44 V Supply Maximum Ratings
615 V Analog Signal Range
Low On Resistance (<35 V)
Fast Switching Times
t_ON <175 ns
t_OFF <145 ns
TTL/CMOS Compatible
Plug-In Replacement for DG411/DG412/DG413




Application

Audio and Video Switching
Automatic Test Equipment
Precision Data Acquisition
Battery Powered Systems
Sample Hold Systems
Communication Systems

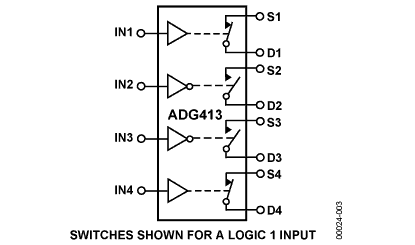

Pinout








Specifications

V_DD to V_SS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+44 V
V_DD to GND . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +25 V
VSS to GND . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3 V to 25 V
VL to GND . . . . . . . . . . . . . . . . . . . . . . 0.3 V to V_DD + 0.3 V
Analog, Digital Inputs². . . . . . . . . . . V_SS 2 V to V_DD +2 V or
30 mA, Whichever Occurs First
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . . . 30 mA
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . . 100 mA
(Pulsed at 1 ms, 10% Duty Cycle max)
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . . 40°C to +85°C
Extended (T Version) . . . . . . . . . . . . . . .. 55°C to +125°C
Storage Temperature Range . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . .. . . . . +150°C
Cerdip Package, Power Dissipation . . . . . . . . . . . . . 900 mW
_JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . 76°C/W
Lead Temperature, Soldering (10 sec) . . . . . . . . . .. +300°C
Plastic Package, Power Dissipation . . . . . . . . . . . . . 470 mW
_JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . 117°C/W
Lead Temperature, Soldering (10 sec) . . . . . . . . . . . +260°C
SOIC Package, Power Dissipation . . . . . . . . . . . . . . 600 mW
_JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . 77°C/W
TSSOP Package, Power Dissipation . . . . . . . . . . . . . 450 mW
_JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . 115°C/W
JC Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . 35°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . .. . . +220°C






Description

The ADG411, ADG412 and ADG413 are monolithic CMOS devices comprising four independently selectable switches. ADG411, ADG412 and ADG413  are designed on an enhanced LC² MOS process which provides low power dissipation yet gives high switching speed and low on resistance. The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. Fast switching speed coupled with high signal bandwidth also make the parts suitable for video signal switching. CMOS construction ensures ultralow power dissipation making the parts ideally suited for portable and battery powered instruments.

The ADG411, ADG412 and ADG413 contain four independent SPST switches. The ADG411, ADG412 and ADG413 differ only in that the digital control logic is inverted. The ADG411, ADG412 and ADG413 switches are turned on with a logic low on the appropriate control input, while a logic high is required for the product. The product has two switches with digital control logic similar to that of the product while the logic is inverted on the other two switches. Each switch conducts equally well in both directions when ON and each has an input signal range that extends to the supplies. In the OFF condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
