Purchase ADG613, In-stock ADG613 From SeekIC.
MFG:ADI D/C:09
Part Number: ADG613
MFG: ADI
D/C: 09
Description: The ADG611, ADG612, and ADG613 are monolithic CMOS devices containing four independently selectable sw...
- Table of contents:
ADG613
-
Suppliers
DataSheet
General Description
ADG613 General Description
The ADG611, ADG612, and ADG613 are monolithic CMOS devices containing four independently selectable switches. These switches offer ultralow charge injection of 1 pC over full input signal range and typical leakage currents of 10 pA at 25°C.
They are fully specified for ±5 V, +5 V, and +3 V supplies. They contain four independent single-pole/single-throw (SPST) switches. The ADG611 and ADG612 differ only in that the digital control logic is inverted. The ADG611 switches are turned on with a logic low on the appropriate control input, while a logic high is required to turn on the switches of the ADG612. The ADG613 contains two switches whose digital control logic is similar to the ADG611, while the logic is inverted on the other two switches.
Each switch conducts equally well in both directions when ON and has an input signal range that extends to the supplies. The ADG613 exhibits break-before-make switching action. The ADG611/ADG612/ADG613 are available in small 16-lead TSSOP packages.
ADG613 Maximum Ratings
VDD to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 V
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6.5 V
VSS to GND . . . . . . . . . . . . . . . . . . . . . . . . .+0.3 V to 6.5 V
Analog Inputs2 . . . . . . . . . . . . . VSS 0.3 V to VDD + 0.3 V
Digital Inputs2 . . . . . . . . . . . . .. GND 0.3 V to VDD + 0.3 V
or 30 mA, Whichever Occurs First
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
(Pulsed at 1 ms, 10% Duty Cycle max)
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . . 10 mA
3 V operation 85°C to 125°C . . . . . . . . . . . . . . . . . ..7.5 mA
Operating Temperature Range
Automotive (Y Version) . . . . . . . . . . . . . . .40°C to +125°C
Storage Temperature Range . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . 150°C
16-Lead TSSOP, JA Thermal Impedance . . . . . . 150.4°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . .220°C
NOTES
1Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Only one absolute maximum rating may be applied at any one time.
2Overvoltages at IN, S, or D will be clamped by internal diodes. Current should be limited to the maximum ratings given.
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6.5 V
VSS to GND . . . . . . . . . . . . . . . . . . . . . . . . .+0.3 V to 6.5 V
Analog Inputs2 . . . . . . . . . . . . . VSS 0.3 V to VDD + 0.3 V
Digital Inputs2 . . . . . . . . . . . . .. GND 0.3 V to VDD + 0.3 V
or 30 mA, Whichever Occurs First
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
(Pulsed at 1 ms, 10% Duty Cycle max)
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . . 10 mA
3 V operation 85°C to 125°C . . . . . . . . . . . . . . . . . ..7.5 mA
Operating Temperature Range
Automotive (Y Version) . . . . . . . . . . . . . . .40°C to +125°C
Storage Temperature Range . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . 150°C
16-Lead TSSOP, JA Thermal Impedance . . . . . . 150.4°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . .220°C
NOTES
1Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Only one absolute maximum rating may be applied at any one time.
2Overvoltages at IN, S, or D will be clamped by internal diodes. Current should be limited to the maximum ratings given.
ADG613 Features
` 1 pC Charge Injection
` ±2.7 V to ±5.5 V Dual Supply
` +2.7 V to +5.5 V Single Supply
` Automotive Temperature Range 40 to +125
` 100 pA Max @ 25 Leakage Currents
` 85 On-Resistance
` Rail-to-Rail Switching Operation
` Fast Switching Times
` 16-Lead TSSOP Packages
` Typical Power Consumption (<0.1 W)
` TTL/CMOS-Compatible Inputs
` ±2.7 V to ±5.5 V Dual Supply
` +2.7 V to +5.5 V Single Supply
` Automotive Temperature Range 40 to +125
` 100 pA Max @ 25 Leakage Currents
` 85 On-Resistance
` Rail-to-Rail Switching Operation
` Fast Switching Times
` 16-Lead TSSOP Packages
` Typical Power Consumption (<0.1 W)
` TTL/CMOS-Compatible Inputs
ADG613 Typical Application
· Automatic Test Equipment
· Data Acquisition Systems
· Battery-Powered Systems
· Communication Systems
· Sample and Hold Systems
· Audio Signal Routing
· Relay Replacement
· Avionics
· Data Acquisition Systems
· Battery-Powered Systems
· Communication Systems
· Sample and Hold Systems
· Audio Signal Routing
· Relay Replacement
· Avionics

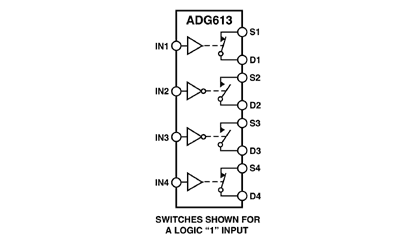

ADG613 Connection Diagram
ADG613
