Purchase ADG619, In-stock ADG619 From SeekIC.
MFG:ADI D/C:09
Part Number: ADG619
MFG: ADI
D/C: 09
Description: The ADG619 and the ADG620 are monolithic, CMOS SPDT (single pole, double throw) switches. Each switch ...
- Table of contents:
ADG619
-
Suppliers
DataSheet
General Description
ADG619 General Description

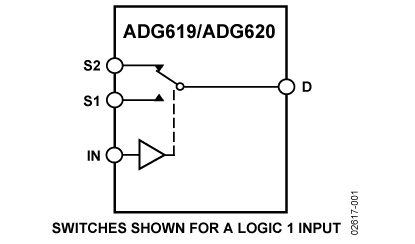

The ADG619 and the ADG620 are monolithic, CMOS SPDT (single pole, double throw) switches. Each switch conducts equally well in both directions when on.
The ADG619/ADG620 offers low On-Resistance of 4 , which is matched to within 0.7 between channels. These switches also provide low power dissipation yet give high switching speeds.The ADG619 exhibits break-before-make switching action, thus preventing momentary shorting when switching channels. The ADG620 exhibits make-before-break action.
The ADG619/ADG620 are available in 8-lead SOT-23 packages and 8-lead Micro-SOIC packages.
ADG619 Features
6 (Max) On Resistance
0.8 (Max) On-Resistance Flatness
2.7 V to 5.5 V Single Supply
±2.7 V to ±5.5 V Dual Supply
Rail-to-Rail Operation
8-Lead SOT-23 Package, 8-Lead Micro-SOIC Package
Typical Power Consumption (<0.1 W)
TTL/CMOS Compatible Inputs
0.8 (Max) On-Resistance Flatness
2.7 V to 5.5 V Single Supply
±2.7 V to ±5.5 V Dual Supply
Rail-to-Rail Operation
8-Lead SOT-23 Package, 8-Lead Micro-SOIC Package
Typical Power Consumption (<0.1 W)
TTL/CMOS Compatible Inputs
ADG619 Typical Application
Automatic Test Equipment Power Routing Communication Systems Data Acquisition Systems Sample and Hold Systems Avionics Relay Replacement Battery-Powered Systems
ADG619
PDF/DataSheet Download
- Datasheet: ADG619
- File Size: 451595 KB
- Manufacturer: AD
- Click here to Download
