Purchase ADG621, In-stock ADG621 From SeekIC.
MFG:ADI D/C:09
Part Number: ADG621
MFG: ADI
D/C: 09
Description: The ADG621, ADG622, and the ADG623 are monolithic, CMOS SPST (single-pole, single-throw) switches. Eac...
- Table of contents:
ADG621
-
Suppliers
DataSheet
General Description
ADG621 General Description
The ADG621, ADG622, and the ADG623 are monolithic, CMOS SPST (single-pole, single-throw) switches. Each switch of the ADG621, ADG622, and ADG623 conducts equally well in both directions when on.
The ADG621/ADG622/ADG623 contain two independent switches. The ADG621 and ADG622 differ only in that both switches are normally open and normally closed respectively. In the ADG623, Switch 1 is normally open and Switch 2 is normally closed. The ADG623 exhibits break-before-make switching action.
The ADG621/ADG622/ADG623 offers low on-resistance of 4 Ω, which is matched to within 0.25 Ω between channels. These switches also provide low power dissipation yet gives high switching speeds. The ADG621, ADG622, and ADG623 are available in a 10-lead µSOIC package.
ADG621 Maximum Ratings
VDD to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 V
VDD to GND . . . . . . . . . . . . . . . . . . . . . . .. . . 0.3 V to +6.5 V
VSS to GND . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3 V to 6.5 V
Analog Inputs2 . . . . . . . . . . . . . . .VSS 0.3 V to VDD + 0.3 V
Digital Inputs2 . . . . . . . . . . .. . . . . . . 0.3 V to VDD + 0.3 V or
30 mA, Whichever Occurs First
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mA
(Pulsed at 1 ms, 10% Duty Cycle max)
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . . . 50 mA
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . .40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
µSOIC Package
JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . 206°C/W
JC Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . 44°C/W
Lead Temperature, Soldering (10 seconds) . . .. . . . . . . 300°C
IR Reflow, Peak Temperature . . . . . . . . . . . . . . . . . . . 220°C
VDD to GND . . . . . . . . . . . . . . . . . . . . . . .. . . 0.3 V to +6.5 V
VSS to GND . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3 V to 6.5 V
Analog Inputs2 . . . . . . . . . . . . . . .VSS 0.3 V to VDD + 0.3 V
Digital Inputs2 . . . . . . . . . . .. . . . . . . 0.3 V to VDD + 0.3 V or
30 mA, Whichever Occurs First
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mA
(Pulsed at 1 ms, 10% Duty Cycle max)
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . . . 50 mA
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . .40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
µSOIC Package
JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . 206°C/W
JC Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . 44°C/W
Lead Temperature, Soldering (10 seconds) . . .. . . . . . . 300°C
IR Reflow, Peak Temperature . . . . . . . . . . . . . . . . . . . 220°C
ADG621 Features
5.5 (Max) On Resistance
0.9 (Max) On-Resistance Flatness
2.7 V to 5.5 V Single Supply
±2.7 V to ±5.5 V Dual Supply
Rail-to-Rail Operation
10-Lead SOIC Package
Typical Power Consumption (<0.01 W)
TTL/CMOS Compatible Inputs
0.9 (Max) On-Resistance Flatness
2.7 V to 5.5 V Single Supply
±2.7 V to ±5.5 V Dual Supply
Rail-to-Rail Operation
10-Lead SOIC Package
Typical Power Consumption (<0.01 W)
TTL/CMOS Compatible Inputs
ADG621 Typical Application
Automatic Test Equipment
Power Routing
Communication Systems
Data Acquisition Systems
Sample and Hold Systems
Avionics
Relay Replacement
Battery-Powered Systems
Power Routing
Communication Systems
Data Acquisition Systems
Sample and Hold Systems
Avionics
Relay Replacement
Battery-Powered Systems

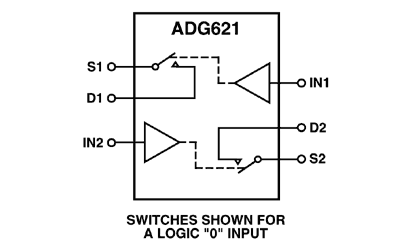

ADG621 Connection Diagram
ADG621
PDF/DataSheet Download
- Datasheet: ADG621
- File Size: 451595 KB
- Manufacturer: AD
- Click here to Download
