Features: 0.5 Typical On Resistance0.8 Maximum On Resistance at 125°C1.65 V to 3.6 V OperationAutomotive Temperature Range: 40°C to +125°CHigh Current Carrying Capability: 300 mA ContinuousRail-to-Rail Switching OperationFast Switching Times <20 nsTypical Power Consumption (<0.1W)Application...
ADG836: Features: 0.5 Typical On Resistance0.8 Maximum On Resistance at 125°C1.65 V to 3.6 V OperationAutomotive Temperature Range: 40°C to +125°CHigh Current Carrying Capability: 300 mA ContinuousRail-to-R...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +4.6 V
Analog Inputs2 . . . . . . . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V
Digital Inputs2 . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 4.6 V
or 10 mA, Whichever Occurs First
Peak Current, S or D
3.3 V Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 mA
2.5 V Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 460 mA
1.8 V Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420 mA
(Pulsed at 1ms, 10% Duty Cycle Max)
Continuous Current, S or D
3.3 V Operation 300 mA
2.5 V Operation 275 mA
1.8 V Operation 250 mA
Operating Temperature Range
Automotive (Y Version) . . . . . . . . . . . . . .40°C to +125°C
Storage Temperature Range . . . . . . . . . . .65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . .150°C
MSOP Package
JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . .206°C/W
JC Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . 44°C/W
LFCSP Package
JA Thermal Impedance (3-Layer Board) . . . . . . . 61.1°C/W
IR Refow, Peak Temperature <20 sec . . . . . . . . . . . . . 235°C
NOTES
1 Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specifcation is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Only one absolute maximum rating may be applied at any one time.
2 Overvoltages at IN, S, or D will be clamped by internal diodes. Current should be limited to the maximum ratings given.
The ADG836 is a low voltage CMOS device containing two independently selectable single-pole, double-throw (SPDT) switches. This device offers ultralow on resistance of less than 0.8 over the full temperature range. The ADG836 is fully specifed for 3.3 V, 2.5 V, and 1.8 V supply operation.
Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. The ADG836 exhibits break-before-make switching action.

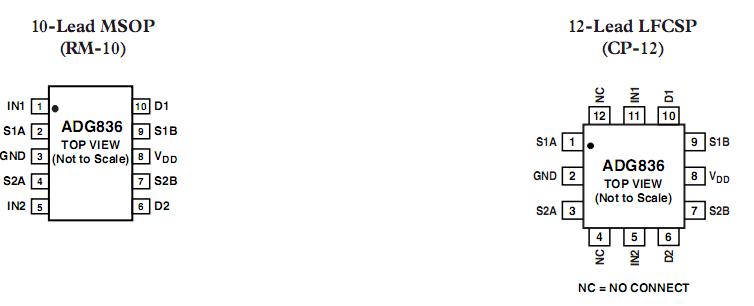

The ADG836 is available in 10-lead MSOP and 3 mm * 3 mm 12-lead LFCSP packages.
