MFG:Analog Devices Inc (VA)  Category:Integrated Circuits (ICs)

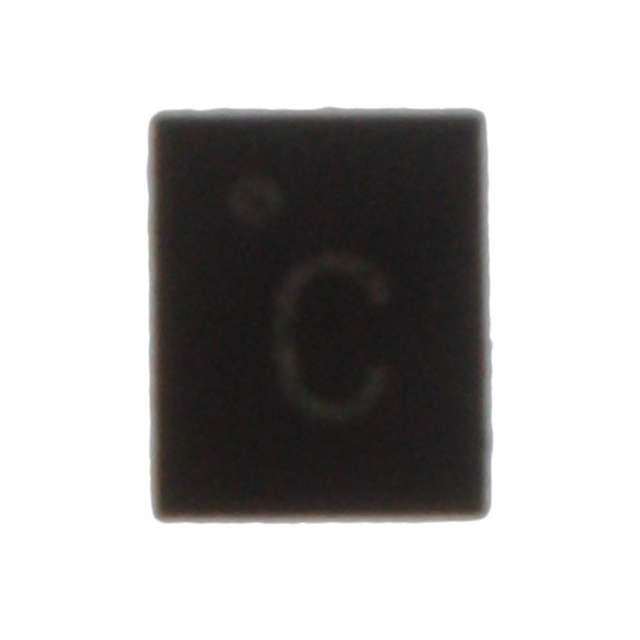

ADG858BCPZ-REEL7

ADG Series Datasheet download

Five Points

Part Number: ADG858BCPZ-REEL7

Category: Integrated Circuits (ICs)

MFG: Analog Devices Inc (VA)





Descriptions: IC MUX QUAD SPDT 2:1 MUX 16LFCSP

Price Break

1
25
100
250
500

Unit Price

2.86000
2.28600
1.77800
1.68912
1.65100

Extended Price

2.86
57.15
177.80
422.28
825.50

(All prices are in USD) Prices for reference only
Urgent Purchase

ADG858BCPZ-REEL7 General Description

IC MUX QUAD SPDT 2:1 MUX 16LFCSP

ADG858BCPZ-REEL7 Parameters

Technical/Catalog InformationADG858BCPZ-REEL7
VendorAnalog Devices Inc (VA)
CategoryIntegrated Circuits (ICs)
TypeSwitch
Voltage Supply SourceSingle Supply
Voltage - Supply, Single/Dual (±)1.8 V ~ 5.5 V
Circuit4 x SPDT
On-State Resistance720 mOhm
Mounting TypeSurface Mount
Package / Case16-LFCSP
PackagingDigi-Reel?
Current - Supply0.003A
Operating Temperature-40°C ~ 85°C
FunctionSwitch
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ADG858BCPZ REEL7
ADG858BCPZREEL7
ADG858BCPZ REEL7DKR ND
ADG858BCPZREEL7DKRND
ADG858BCPZ-REEL7DKR
