Purchase ADIS16003, In-stock ADIS16003 From SeekIC.
MFG:ADI D/C:09
Part Number: ADIS16003
MFG: ADI
D/C: 09
Description: The ADIS16003 is a low cost, low power, complete dual-axis accelerometer with an integrated serial per...
- Table of contents:
ADIS16003
-
Suppliers
DataSheet
General Description
ADIS16003 General Description
The ADIS16003 is a low cost, low power, complete dual-axis accelerometer with an integrated serial peripheral interface (SPI). An integrated temperature sensor is also available on the SPI interface. The ADIS16003 measures acceleration with a full-scale range of ±1.7 g (minimum), and it can measure both dynamic acceleration (vibration) and static acceleration (gravity).
The typical noise floor is 110 g/Hz, allowing signals below 1 mg (60 Hz bandwidth) to be resolved.
The bandwidth of the accelerometer is set with optional capaci-tors CX and CY at the XFILT and YFILT pins. Selection of the two analog input channels is controlled via the serial interface.
An externally driven self-test pin (ST) allows the user to verify the accelerometer functionality.
The ADIS16003 is available in a 7.2 mm * 7.2 mm * 3.6 mm, 12-terminal LGA package.
ADIS16003 Maximum Ratings
| Parameter | Rating |
| Acceleration (Any Axis, Unpowered) Acceleration (Any Axis, Powered) VCC All Other Pins Output Short-Circuit Duration (Any Pin to Common) Operating Temperature Range Storage Temperature |
3,500 g 3,500 g 0.3 V to +7.0 V (COM 0.3 V) to (VCC + 0.3 V) Indefinite 40°C to +125°C 65°C to +150°C |
ADIS16003 Features
Dual-axis accelerometer
SPI® digital output interface
Internal temperature sensor
Highly integrated; minimal external components;
bandwidth externally selectable
1 mg resolution at 60 Hz
Externally controlled electrostatic self-test
3.0 V to 5.25 V single-supply operation
Low power: <2 mA
3500 g shock survival
7.2 mm * 7.2 mm * 3.6 mm package
SPI® digital output interface
Internal temperature sensor
Highly integrated; minimal external components;
bandwidth externally selectable
1 mg resolution at 60 Hz
Externally controlled electrostatic self-test
3.0 V to 5.25 V single-supply operation
Low power: <2 mA
3500 g shock survival
7.2 mm * 7.2 mm * 3.6 mm package
ADIS16003 Typical Application
Industrial vibration/motion sensing
Platform stabilization
Dual-axis tilt sensing
Tracking, recording, analysis devices
Alarms, security devices
Platform stabilization
Dual-axis tilt sensing
Tracking, recording, analysis devices
Alarms, security devices

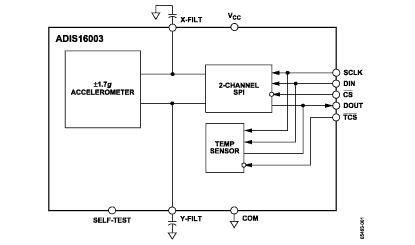

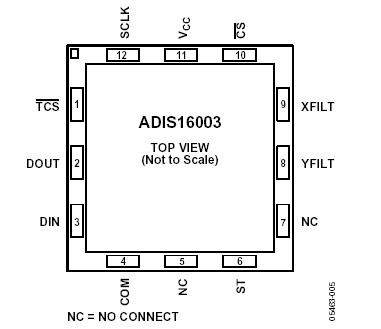

ADIS16003 Connection Diagram
ADIS16003
PDF/DataSheet Download
- Datasheet: ADIS16003
- File Size: 668834 KB
- Manufacturer: AD
- Click here to Download
