Part Number: ADIS16120



MFG: ADI



D/C: 09

Description: The ADIS16120 is a low noise, angular rate sensor (gyroscope) that includes all of the necessary embedded signal conditioning to provid...


Urgent Purchase

ADIS16120 General Description



The ADIS16120 is a low noise, angular rate sensor (gyroscope) that includes all of the necessary embedded signal conditioning to provide a low noise, analog output over the complete dynamic range

ADIS16120 Maximum Ratings

Sensitivity 0.2 °/s/mV
Typical Bandwidth (kHz) 0.32kHz
Noise Density (°/s/rtHz) 0.015
Nonlinearity 0.04% of FS
Temp Sensor Yes
Voltage Reference Yes
Voltage Supply (V) 4.75 to 5.25
Supply Current 95mA
Temp Range (°C) -40 to 85
Package 36 mm x 42 mm Mod
Range +/ - 300 °/s

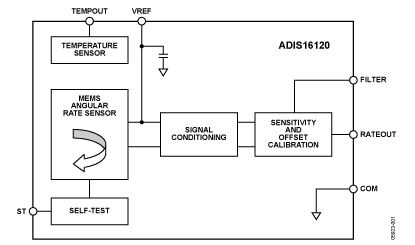

ADIS16120 Connection Diagram

ADIS16120 Connection Diagram
