ADL5570ACPZ-R7 suppliers, ADL5570ACPZ-R7 price trend, ADL5570ACPZ-R7 PDF download, circuit diagram from SeekIC

Position: Home > Datasheet list > ADL Series > Index A > ADL5570ACPZ-R7

Purchase ADL5570ACPZ-R7, In-stock ADL5570ACPZ-R7 From SeekIC.

MFG:Analog Devices Inc (VA) Category:RF and RFID

Five Points

Category: RF and RFID

MFG: Analog Devices Inc (VA)

Descriptions: IC AMP RF WIMAX 2.4GHZ 16LFCSP

Price Break

1
25
100
250
500

Unit Price

8.43000
7.59000
6.72980
6.45152
6.32500

Extended Price

8.43
189.75
672.98
1612.88
3162.50

(All prices are in USD) Prices for reference only

IC AMP RF WIMAX 2.4GHZ 16LFCSP

Technical/Catalog Information	ADL5570ACPZ-R7
Vendor	Analog Devices Inc (VA)
Category	RF and RFID
Package / Case	16-LFCSP
Voltage - Supply	3.2V ~ 4.2V
Current - Supply	130mA
Gain	29dB
Frequency	2.3GHz ~ 2.4GHz
RF Type	WiMAX / WiBro
Packaging	Cut Tape (CT)
Noise Figure	-
P1db	31dBm
Test Frequency	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADL5570ACPZ R7 ADL5570ACPZR7 ADL5570ACPZ R7CT ND ADL5570ACPZR7CTND ADL5570ACPZ-R7CT

ADL5306
PDF/DataSheet Download

ADL5570
The ADL5570 is a high linearity 2.3 GHz to 2.4 GHz power amplifier designed for WiMAX terminals using TDD operation at a duty cycle of 31%. With a gain of 29 dB and an output compression point of 31
ADL5562ACPZ-R7
IC AMP DIFF RF/IF 3.3GHZ 16LFCSP
ADL5562
The ADL5562 is a high performance differential amplifier optimized for RF and IF applications. The amplifier offers low noise of 2.1 nV/Hz and excellent distortion performance over a wide frequency range, making it an ideal driver for high speed 8-bit to 16-...
ADL5561ACPZ-R7
IC AMP DIFF RF/IF 2.9GHZ 16LFCSP
ADL5561
The ADL5561 provides three gain levels of 6 dB, 12 dB, and 15.5 dB through a pin-strappable configuration. For the single-ended input configuration, the gains are reduced to 5.6 dB, 11.1 dB, and 14.1 dB. Using an external series input resistor expands the am...

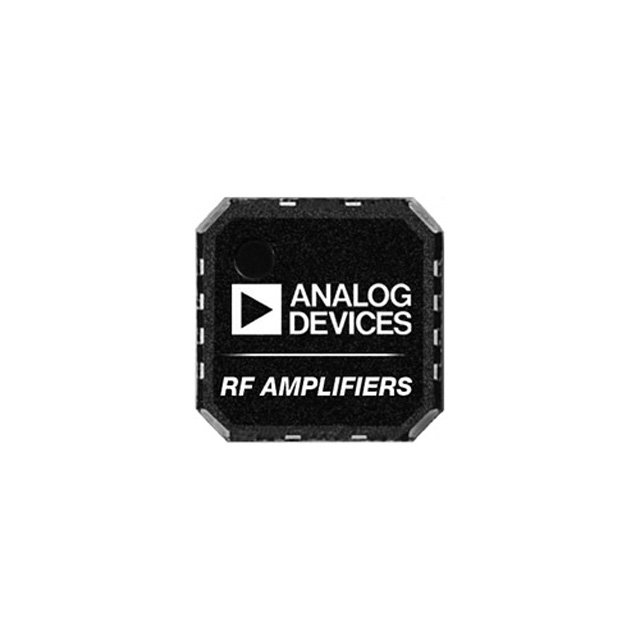

ADL5542ACPZ-R7
