Purchase ADM1385, In-stock ADM1385 From SeekIC.
MFG:ADI D/C:09
Part Number: ADM1385
MFG: ADI
D/C: 09
Description: The ADM3202/ADM3222/ADM1385 transceivers are high speed, 2-channel RS-232/V.2...
- Table of contents:
ADM1385
-
Suppliers
DataSheet
General Description
ADM1385 General Description

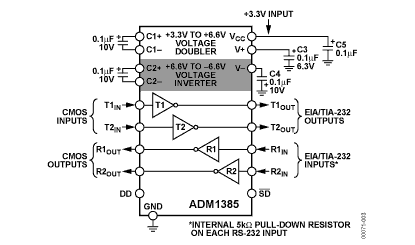

The ADM3202/ADM3222/ADM1385 transceivers are high speed, 2-channel RS-232/V.28 interface devices which operate from a single +3.3 V power supply. Low power consumption and a shutdown facility (ADM3222/ ADM1385) makes them ideal for battery powered portable instruments. The ADM3202/ADM3222/ADM1385 conforms to the EIA- 232E and CCITT V.28 specifications and operates at data rates up to 460 kbps. Four external 0.1 F charge pump capacitors are used for the voltage doubler/inverter permitting operation from a single +3.3 V supply. The ADM3222 contains additional enable and shutdown circuitry.
The EN input may be used to three-state the receiver outputs. The SD input is used to power down the charge pump and transmitter outputs reducing the quiescent current to less than 0.5 A. The receivers remain enabled during shutdown unless disabled using EN. The ADM1385 contains a driver disable mode and a complete shutdown mode. The ADM3202 is available in a 16-lead DIP, narrow and wide SOIC as well as a space saving 20-lead TSSOP package. The ADM3222 is available in 18-lead DIP, SO and in 20-lead SSOP and TSSOP. The ADM1385 is available in a 20-lead SSOP package, which is pin compatible with the LTC1385 CG.
ADM1385 Maximum Ratings
ABSOLUTE MAXIMUM RATINGS*
(TA = +25°C unless otherwise noted)
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6 V
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . (VCC 0.3 V) to +14 V
V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3 V to 14 V
Input Voltages
TIN . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (V+, +0.3 V)
RIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30 V
Output Voltages
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±15 V
ROUT . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (VCC + 0.3 V)
Short Circuit Duration
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
Power Dissipation
Power Dissipation N-16 . . . . . . . . . . . . . . . . . . . . . 450 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 117°C/W
Power Dissipation R-16 . . . . . . . . . . . . . . . . . . . . . 450 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W
Power Dissipation RU-16 . . . . . . . . . . . . . . . . . . . 500 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W
Power Dissipation R-18 . . . . . . . . . . . . . . . . . . . . . 450 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W
Power Dissipation RS-20 . . . . . . . . . . . . . . . . . . . . 450 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W
Power Dissipation RU-20 . . . . . . . . . . . . . . . . . . . 450 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . +300°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<1500 V
(TA = +25°C unless otherwise noted)
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6 V
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . (VCC 0.3 V) to +14 V
V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3 V to 14 V
Input Voltages
TIN . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (V+, +0.3 V)
RIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30 V
Output Voltages
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±15 V
ROUT . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (VCC + 0.3 V)
Short Circuit Duration
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
Power Dissipation
Power Dissipation N-16 . . . . . . . . . . . . . . . . . . . . . 450 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 117°C/W
Power Dissipation R-16 . . . . . . . . . . . . . . . . . . . . . 450 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W
Power Dissipation RU-16 . . . . . . . . . . . . . . . . . . . 500 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W
Power Dissipation R-18 . . . . . . . . . . . . . . . . . . . . . 450 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W
Power Dissipation RS-20 . . . . . . . . . . . . . . . . . . . . 450 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W
Power Dissipation RU-20 . . . . . . . . . . . . . . . . . . . 450 mW
(Derate 6 mW/°C above +50°C)
JA, Thermal Impedance . . . . . . . . . . . . . . . . . . . 158°C/W
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . +300°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<1500 V
ADM1385 Features
460 kbps Data Rate
Specified at +3.3 V
Meets EIA-232E Specifications
0.1 F Charge Pump Capacitors
Low Power Shutdown (ADM3222E and ADM1385)
DIP, SO, SOIC, SSOP and TSSOP Package Options
Upgrade for MAX3222/32 and LTC1385
Specified at +3.3 V
Meets EIA-232E Specifications
0.1 F Charge Pump Capacitors
Low Power Shutdown (ADM3222E and ADM1385)
DIP, SO, SOIC, SSOP and TSSOP Package Options
Upgrade for MAX3222/32 and LTC1385
ADM1385 Typical Application
General Purpose RS-232 Data Link
Portable Instruments
Printers
Palmtop Computers
PDAs
Portable Instruments
Printers
Palmtop Computers
PDAs
