Position: Home > Datasheet list > ADM Series > Index A > ADM2491E
Electronica China

Purchase ADM2491E, In-stock ADM2491E From SeekIC.

MFG:ADI  D/C:09

ADM2491E Product Image

ADM Series Datasheet download

Five Points

Part Number: ADM2491E



MFG: ADI



D/C: 09

Description: The ADM2491E is an isolated data transceiver with ±8 kV ESD protection and is suitable for high speed, half- or full-duplex communication ...


Urgent Purchase

ADM2491E General Description


The ADM2491E is an isolated data transceiver with ±8 kV ESD protection and is suitable for high speed, half- or full-duplex communication on multipoint transmission lines. For halfduplex operation,

ADM2491E Maximum Ratings

Isolation V (rms) 5 kV
Available Packages SOIC
ESD-Protection 8 kV
Pwr Supply (Vnom) +3 to +5 & ISO +5
Data Rate 16Mbps
Full-Half Duplex Full,Half
# of Nodes On Bus 32
Drvr/Rcvr Enable Yes
Fail Safe Open

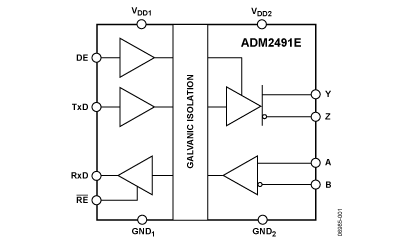

ADM2491E Connection Diagram

ADM2491E Connection Diagram

ADM2491E datasheet
