Part Number: ADM6996F
Description: The ADM6996F integrates four 100Base-X physical sub-layer (PHY), 100Base-TX physical medium dependent ...
- Table of contents:
ADM6996F
-
Suppliers
DataSheet
General Description
ADM6996F General Description
The ADM6996F integrates four 100Base-X physical sub-layer (PHY), 100Base-TX physical medium dependent (PMD) transceivers, four complete 10Base-T modules, 6 port 10/100 switch controller and two 10/100 MII/GPSI MAC and emory into a single chip for both 10Mbits/s, 100Mbits/s Ethernet switch operation. It also supports 100Base-FX operation through external fiber-optic transceivers. The device is capable of operating in either Full Duplex mode or Half-Duplex mode in 10Mbits/s and 100Mbits/s. Operational modes can be selected by hardware configuration pins, oftware settings of management registers, or determined by the on-chip auto negotiation logic.
The ADM6996F consists of three major blocks:
• 10/100M PHY Block
• Switch Controller Block
• Built-in SSRAM
The interfaces used for communication between PHY block and switch core is MII interface.
Auto MDIX function is supported in this block. This function can be Enable/Disable by hardware pin.
ADM6996F Maximum Ratings
| Symbol | Parameter |
Rating |
Units |
| Vcc | Power Supply |
-0.3 to 3.63 |
V |
| Vcca2 | TX line driver |
1.8 |
V |
| Vccpll | PLL voltage |
1.8 |
V |
| Vccik | Digital core voltage |
1.8 |
V |
| VIN | Input Voltage |
-0.3 to VCC + 0.3 |
V |
| Vout | Output Voltage |
-0.3 to VCC+ 0.3 |
V |
| TSTG | Storage Temperature |
-55 to 155 |
|
| PD | Power Dissipation |
1.3W |
W |
| ESD | ESD Rating |
2KV |
V |
ADM6996F Features
• Supports four 10M/100M auto-detect Half/Full duplex switch ports with TX/FX interfaces and two MII/GPSI ports.
• Supports 2048 MAC addresses table.
• Supports four queue for QoS
• Supports priority features by Port-Based, 802.1p VLAN & IP TOS of packets.
• Supports Store & Forward architecture and performs forwarding and filtering at non-blocking full wire speed.
• Supports buffer allocation with 256 bytes per block
• Supports Aging function Enable/Disable.
• Supports per port Single/Dual color mode with Power On auto diagnostic.
• Supports 802.3x Flow Control pause packet for Full Duplex in case buffer is full.
• Supports Back Pressure function for Half Duplex operation in case buffer is full.
• Supports packet lengths up to 1522 bytes.
• Broadcast Storming Filter function.
• Supports 802.1Q VLAN. Up to 16 VLAN groups are implemented by the last four bits of VLAN ID.
• 2bit MAC clone to support multiple WAN application
• Supports TP interface Auto MDIX function for auto TX/RX swap by strapping-pin.
• Easy Management 32bits smart counter for per port RX/TX byte/packet count, error count and collision count.
• Supports PHY status output for management system.
• 25M Crystal only for the whole system.
• 128 QFP package with 0.18um technology. 1.8V/3.3V power supply.
• Supports 2048 MAC addresses table.
• Supports four queue for QoS
• Supports priority features by Port-Based, 802.1p VLAN & IP TOS of packets.
• Supports Store & Forward architecture and performs forwarding and filtering at non-blocking full wire speed.
• Supports buffer allocation with 256 bytes per block
• Supports Aging function Enable/Disable.
• Supports per port Single/Dual color mode with Power On auto diagnostic.
• Supports 802.3x Flow Control pause packet for Full Duplex in case buffer is full.
• Supports Back Pressure function for Half Duplex operation in case buffer is full.
• Supports packet lengths up to 1522 bytes.
• Broadcast Storming Filter function.
• Supports 802.1Q VLAN. Up to 16 VLAN groups are implemented by the last four bits of VLAN ID.
• 2bit MAC clone to support multiple WAN application
• Supports TP interface Auto MDIX function for auto TX/RX swap by strapping-pin.
• Easy Management 32bits smart counter for per port RX/TX byte/packet count, error count and collision count.
• Supports PHY status output for management system.
• 25M Crystal only for the whole system.
• 128 QFP package with 0.18um technology. 1.8V/3.3V power supply.
ADM6996F Typical Application
· ADM6996F in 128-pin PQFP:
SOHO 5-port switch
5-port switch + Router with MII CPU interface.
SOHO 5-port switch
5-port switch + Router with MII CPU interface.

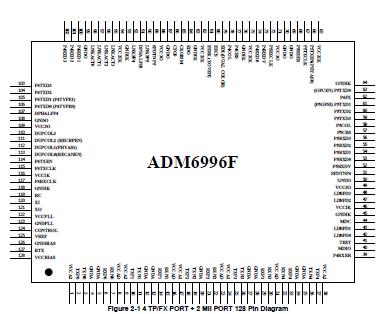

ADM6996F Connection Diagram
ADM6996F
