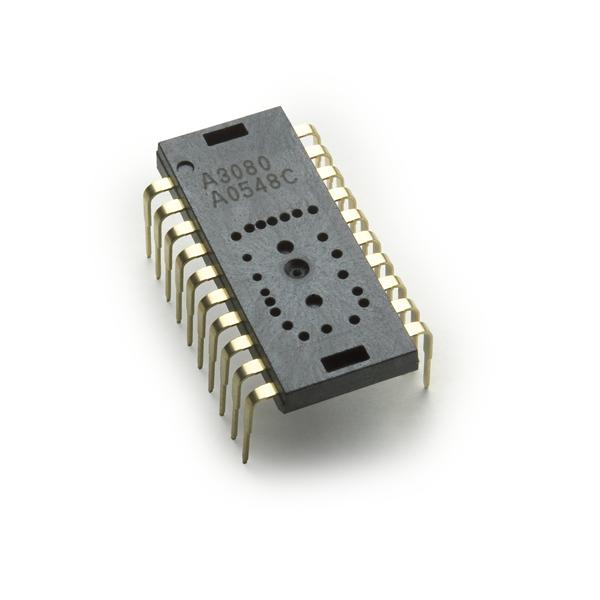

The ADNS-3080 is a high performance addition to Agilent's popular ADNS family of optical mouse sensors.
The ADNS-3080 is based on a new, faster architecture with improved navigation. The sensor is capable of sensing high speed mouse motion - up to 40 inches per second and acceleration up to 15g for increased user precision and smoothness.
The ADNS-3080 along with the ADNS-2120 (or ADNS-2120-001) lens, ADNS-2220 (or ADNS- 220-001) assembly clip and HLMP-ED80-XX000 form a complete, compact optical mouse tracking system. There are no moving parts, which means high reliability and less maintenance for the end user. In addition, precision optical alignment is not required, facilitating high volume assembly.
The sensor is programmed via registers through a four-wire serial port. It is packaged in a 20-pin staggered dual inline package (DIP).
ADNS-3080 Maximum Ratings
|
Parameter |
Symbol |
Minimum |
Typical |
Maximum |
Units |
Notes |
| Storage Temperature |
TS |
-40 |
85 |
|||
| Operating Temperature |
TA |
-15 |
55 |
|||
| Lead Solder Temp |
260 |
For 10 seconds, 1.6mm below seating plane. | ||||
| Supply Voltage |
VDD3 |
-0.5 |
3.7 |
V |
||
| ESD |
2 |
kV |
All pins, human body model MIL 883 Method 3015 | |||
| Input Voltage |
VIN |
-0.5 |
VDD3+0.5 |
V |
NPD, NCS, MOSI, SCLK, RESET, OSC_IN, OSC_OUT, REFC. | |
| Output current |
Iout |
20 |
mA |
LED_CTRL, MISO |
ADNS-3080 Features
• High speed motion detection up to 40 ips and 15g
• New architecture for greatly improved optical navigation technology
• Programmable frame rate over 6400 frames per second
• SmartSpeed self-adjusting frame rate for optimum performance
• Serial port burst mode for fast data transfer
• 400 or 1600 cpi selectable resolution
• Single 3.3 volt power supply
• Four-wire serial port along with Chip Select, Power Down, and Reset pins
• New architecture for greatly improved optical navigation technology
• Programmable frame rate over 6400 frames per second
• SmartSpeed self-adjusting frame rate for optimum performance
• Serial port burst mode for fast data transfer
• 400 or 1600 cpi selectable resolution
• Single 3.3 volt power supply
• Four-wire serial port along with Chip Select, Power Down, and Reset pins
ADNS-3080 Typical Application
• Mice for game consoles and computer games
• Mice for desktop PC's, Workstations, and portable PC's
• Trackballs
• Integrated input devices
• Mice for desktop PC's, Workstations, and portable PC's
• Trackballs
• Integrated input devices

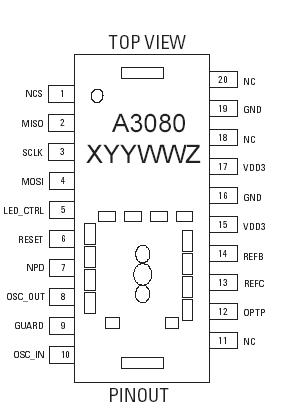

ADNS-3080 Connection Diagram
ADNS-3080
PDF/DataSheet Download
- Datasheet: ADNS-3080
- File Size: 552901 KB
- Manufacturer: Agilent Technologies
- Click here to Download
