Purchase ADP3300, In-stock ADP3300 From SeekIC.
Part Number: ADP3300
Description: The ADP3300 is a member of the ADP330x family of precision low dropout anyCAP™ voltage regulators. The ADP3300 st...
- Table of contents:
ADP3300
-
Suppliers
DataSheet
General Description
ADP3300 General Description
The ADP3300 is a member of the ADP330x family of precision low dropout anyCAP™ voltage regulators. The ADP3300 stands out from conventional LDOs with a novel architecture and an enhanced process. Its patented design requires only a 0.47 F output capacitor for stability. This device is stable with any capacitor, regardless of its ESR (Equivalent Series Resistance) value, including ceramic types (MLCC) for space restricted applications. The ADP3300 achieves exceptional accuracy of ±0.8% at room temperature and ±1.4% overall accuracy over temperature, line and load regulations. The dropout voltage of the ADP3300 is only 80 mV (typical) at 50 mA.
The ADP3300 operates with a wide input voltage range from 3.0 V to 12 V and delivers a load current in excess of 50 mA. It features an error flag that signals when the device is about to lose regulation or when the short circuit or thermal overload protection is activated. Other features include shutdown and optional noise reduction capabilities. The ADP330x anyCAP™ anyCAP is a registered trademark of Analog Devices Inc.
ADP3300 Maximum Ratings
Input Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to +16 V
Shutdown Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +16 V
Error Flag Output Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +16 V
Noise Bypass Pin Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to +5 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Internally Limited
Operating Ambient Temperature Range . . . . . . . . . . . . . . . . .55°C to +125°C
Operating Junction Temperature Range . . . . . . . . . . . . . . . . .55°C to +125°C
JA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .165°C
JC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92°C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . . . . . . . . . . . . . . .+300°C
Vapor Phase (60 sec ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
*This is a stress rating only; operation beyond these limits can cause the device to be permanently damaged.
Shutdown Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +16 V
Error Flag Output Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +16 V
Noise Bypass Pin Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to +5 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Internally Limited
Operating Ambient Temperature Range . . . . . . . . . . . . . . . . .55°C to +125°C
Operating Junction Temperature Range . . . . . . . . . . . . . . . . .55°C to +125°C
JA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .165°C
JC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92°C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . . . . . . . . . . . . . . .+300°C
Vapor Phase (60 sec ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
*This is a stress rating only; operation beyond these limits can cause the device to be permanently damaged.
ADP3300 Features
High Accuracy (Over Line and Load Regulations at 25):±0.8%
Ultralow Dropout Voltage: 80 V Typical @ 50 mA
Requires Only CO = 0.47 F for Stability
anyCAP™ = Stable with All Types of Capacitors (Including MLCC)
Current and Thermal Limiting
Low Noise
Dropout Detector
Low Shutdown Current: 1 A
3.0 V to 12 V Supply Range
40 to +85 Ambient Temperature Range
Several Fixed Voltage Options
Ultrasmall SOT-23 6-Lead Package
Excellent Line and Load Regulations
Ultralow Dropout Voltage: 80 V Typical @ 50 mA
Requires Only CO = 0.47 F for Stability
anyCAP™ = Stable with All Types of Capacitors (Including MLCC)
Current and Thermal Limiting
Low Noise
Dropout Detector
Low Shutdown Current: 1 A
3.0 V to 12 V Supply Range
40 to +85 Ambient Temperature Range
Several Fixed Voltage Options
Ultrasmall SOT-23 6-Lead Package
Excellent Line and Load Regulations
ADP3300 Typical Application
Cellular Telephones
Notebook, Palmtop Computers
Battery Powered Systems
PCMCIA Regulators
Bar Code Scanners
Camcorders, Cameras
Notebook, Palmtop Computers
Battery Powered Systems
PCMCIA Regulators
Bar Code Scanners
Camcorders, Cameras

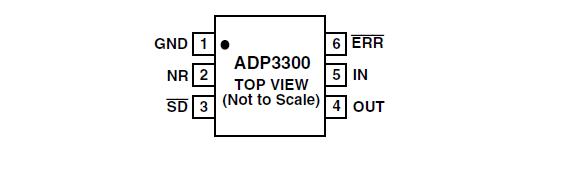

ADP3300 Connection Diagram
ADP3300
