Part Number: ADP3500



MFG: AD

Package Cooled: QFP

D/C: 08+

Description: The ADP3500 is a multifunction power system chip optimized for CDMA cell phone power management. It co...


Urgent Purchase

ADP3500 General Description


The ADP3500 is a multifunction power system chip optimized for CDMA cell phone power management. It contains 15 LDOs. Sophisticated controls are available for power up during battery charging, keypad interface, GPIO/INT function and RTC function. The battery charger has four modes as Pre-charge, Low Current Charge, Full Current Charge, and Regulator modes, and is designed for Li-Ion/Li-Polymer batteries.

ADP3500 Maximum Ratings

Voltage on ADAPTER pin to GND ............ -0.3, 15Vmax
Voltage on VBAT pin to GND ...............-0.3, 7Vmax
Voltage on Pin 6-13, 21-28 to GND .......-0.3, VLDO1+0.3Vmax
Voltage on Pin 1, 62-64 .............- 0.3, VBAT+0.3V max
Voltage on Pin 20, 32 ............. - 0.3, VRTCV+0.3V max
Voltage on Pin 60, 61 ............- 0.3, VADAPTER+0.3V max
Voltage on Pin 2-5, 14, 30, 31, 33 ............ - 0.3, 7V max
Storage Temperature Range .............- 65 to +150 °C
Operating Temperature Range .............- 30 to +85°C
Maximum Junction Temperature ................. 125°C
JA Thermal Impedance (LQFP-64) .......2 layer board 76°C/W
JA Thermal Impedance (LQFP-64) .......4 layer board 54°C/W
Lead Temperature Range (Soldering, 60sec) ........... 300°C

ADP3500 Features

·Handles all CDMA Baseband and RF/IF Power Management
·Functions
·LDOs Optimized for Specific CDMA Subsystems
·Four Backup LDOs for Stand-By mode operation
·Four Li-Ion Battery Charge Modes
·5mA Pre Charge
·Low Current Charge
·Full Current Charge
·Regulator mode (no current limit)
·Ambient Temperature: -30 °C to +85 °C
·64pin 7x7 LQFP package

ADP3500 Typical Application

CDMA/CDMA2000/PCS Handsets

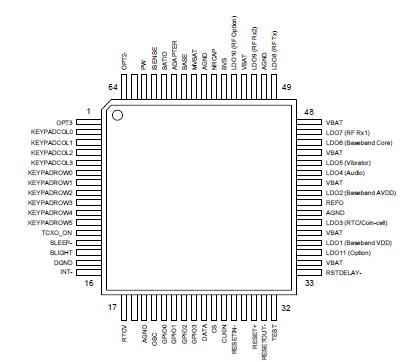

ADP3500 Connection Diagram

ADP3500 Connection Diagram
