Purchase ADS2806-EVM, In-stock ADS2806-EVM From SeekIC.

MFG:Texas Instruments  Category:Programmers, Development Systems

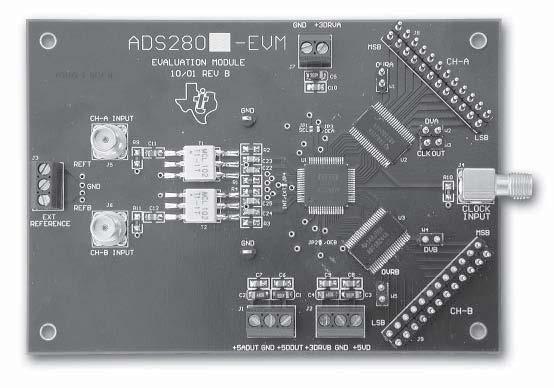

ADS2806-EVM Product Image

ADS Series Datasheet download

Five Points

Part Number: ADS2806-EVM

Category: Programmers, Development Systems

MFG: Texas Instruments





Descriptions: EVAL MOD FOR ADS2806

Price Break

1

Unit Price

101.00000

Extended Price

101.00

(All prices are in USD) Prices for reference only
Urgent Purchase

ADS2806-EVM General Description

EVAL MOD FOR ADS2806

ADS2806-EVM Parameters

Technical/Catalog InformationADS2806-EVM
VendorTexas Instruments
CategoryProgrammers, Development Systems
Number of ADC's2
Inputs per ADC1 Differential
Input Range2 ~ 3 Vpp
Data InterfaceParallel
Number of Bits12
Sampling Rate (Per Second)32M
Voltage Supply SourceSingle
Operating Temperature-40°C ~ 85°C
Supplied ContentsBoard
Utilized IC / PartADS2806
Power (Typ) @ Conditions450mW @ 5 V
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ADS2806 EVM
ADS2806EVM
296 19907 ND
29619907ND
296-19907
