ADS5271 General Description
The ADS5271 is a high-performance, 50MSPS, 8-channel,parallel analog-to-digital converter (ADC). Internal references are provided, simplifying system design requirements. Low power consumption allows for the highest of system integration densities. Serial LVDS (low-voltage differential
signaling) outputs reduce the number of interface lines and package size.
An integrated phase lock loop multiplies the incoming ADC sampling clock by a factor of 12. This 12x clock is used in the process of serializing the data output from each channel. The 12x clock is also used to generate a 1x and a 6x clock, both of which are transmitted as LVDS clock outputs. The 6x clock is denoted by the differential pair LCLKP and LCLKN, while the 1x clock is denoted by ADCLKP and ADCLKN. The word output of each ADC channel can be transmitted either as MSB
ADS5271 Maximum Ratings
Supply Voltage Range, AVDD . . . . . . . . . . . . . . . . . . . . . −0.3V to 3.8V
Supply Voltage Range, LVDD . . . . . . . . . . . . . . . . . . . . . . −0.3V to 3.8V
Voltage Between AVSS and LVSS . . . . . . . . . . . . . . . . . . −0.3V to 0.3V
Voltage Between AVDD and LVDD . . . . . . . . . . . . . . . . . −0.3V to 0.3V
Voltages Applied to External REF Pins . . . . . . . . . . . . . . −0.3V to 2.4V
All LVDS Data and Clock Outputs . . . . . . . . . . . . . . . . . . −0.3V to 2.4V
Analog Input Pins
Clock Running . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0V to 2.7V
Clock Not Running . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.15V to 2.7V
Peak Total Input Current (all inputs) . . . . . . . . . . . . . . . . . . . . . −30mA
Operating Free-Air Temperature Range, TA . . . . . . . . −40°C to 85°C
Lead Temperature 1.6mm (1/16 from case for 10s) 220°C
(1)
Stresses above these ratings may cause permanent damage.Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not supported.
ADS5271 Features
Maximum Sample Rate: 50MSPS
12-Bit Resolution
No Missing Codes
Power Dissipation: 957mW
CMOS Technology
Simultaneous Sample-and-Hold
70.5dB SNR at 10MHz IF
Internal and External References
3.3V Digital/Analog Supply
Serialized LVDS Outputs
Integrated Frame and Synch Patterns
MSB and LSB First Modes
Option to Double LVDS Clock Output Currents
Pin- and Format-Compatible Family
TQFP-80 PowerPAD Package
ADS5271 Typical Application
Portable Ultrasound Systems
Tape Drives
Test Equipment
Optical Networking

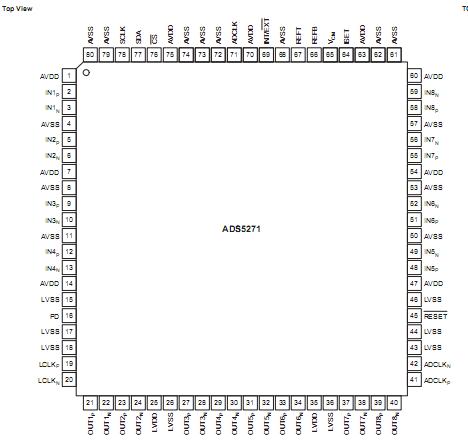

ADS5271 Connection Diagram
