Part Number: ADS5410









Description: The ADS5410 is a high-speed, high-performance pipelined analog-to-digital converter with exceptionally low-noise and hi...


Urgent Purchase

ADS5410 General Description


The ADS5410 is a high-speed, high-performance pipelined analog-to-digital converter with exceptionally low-noise and high spurious-free dynamic range. The ADS5410 high input bandwidth makes it ideal for IF subsampling solutions where digital I/Q demodulators are used. Its high dynamic range makes it well suited for GSM, IS-95, UMTS,and IS-136 digital receivers. Its linearity and low DNL make it ideal for medical imaging applications. Low power consumption makes the ADS5410 ideal for applications in compact pico- and micro-base stations and in portable designs.

ADS5410 Features

80-MSPS Maximum Sample Rate
12-Bit Resolution
No Missing Codes
360-mW Power Dissipation
CMOS Technology
On-Chip S/H
75 dB Spurious Free Dynamic Range at 100 MHz IF
1-GHz Bandwidth Differential Analog Input
On-Chip References
2s Complement Digital Output
3.3-V Analog, 1.8-V Digital Supply
1.8 V3.3 V I/O

ADS5410 Typical Application

Cellular Base Transceiver Station Receive Channel
  IF Sampling Applications
  TDMA: GSM, IS-136, EDGE/UWC-136
  CDMA: IS-95, UMTS, CDMA2000
  Wireless Local Loop
  LMDS, MMDS
  Wideband Baseband Receivers
Medical Imaging:
  Ultrasound
  Magnetic Resonant Imaging
Portable Instrumentation

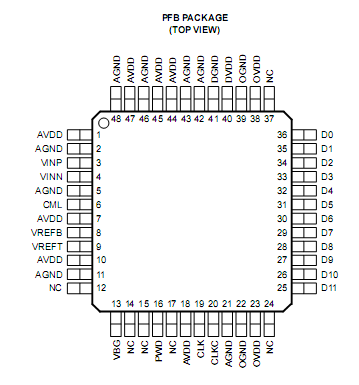

ADS5410 Connection Diagram

ADS5410 Connection Diagram

ADS5410 datasheet

ADS5410
PDF/DataSheet Download
