Part Number: ADS5422
Description: The ADS5422 is a high-dynamic range, 14-bit, 62MSPS,pipelined Analog-to-Digital Converter (ADC). It in...
- Table of contents:
ADS5422
-
Suppliers
DataSheet
General Description
ADS5422 General Description
The ADS5422 is a high-dynamic range, 14-bit, 62MSPS,pipelined Analog-to-Digital Converter (ADC). It includes a high-bandwidth linear track-and-hold amplifier that gives good spurious performance up to the Nyquist rate. The clock input can accept a low-level differential sine wave or square wave signal down to 0.5Vp-p, further improving the Signal-to-Noise Ratio (SNR) performance.
The ADS5422 has a 4Vp-p differential input range (2Vp-p • 2 inputs) for optimum Spurious-Free Dynamic Range (SFDR). The differential operation gives the lowest even-order harmonic components. A lower input voltage can also be selected using the internal references, further optimizing SFDR.
The ADS5422 is available in an LQFP-64 package.
ADS5422 Maximum Ratings
+VSA, +VSD, VDRV .............................................................................. +6V
Analog Input ......................................................... (0.3V) to (+VS + 0.3V)
Logic Input ........................................................... (0.3V) to (+VS + 0.3V)
Case Temperature ....................................................................... +100°C
Junction Temperature .................................................................. +150°C
Storage Temperature .................................................................. +150°C
NOTE: (1) Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. Exposure to absolute maximum conditions for extended periods may affect device reliability.
ADS5422 Features
· HIGH DYNAMIC RANGE:
High SFDR: 85dB at 10MHz fIN
High SNR: 72dB at 10MHz fIN
· PREMIUM TRACK-AND-HOLD:
Differential Inputs
Selectable Full-Scale Input Range
· FLEXIBLE CLOCKING:
Differential or Single-Ended
Accepts Sine or Square Wave Clocking Down to 0.5Vp-p
Variable Threshold Level
High SFDR: 85dB at 10MHz fIN
High SNR: 72dB at 10MHz fIN
· PREMIUM TRACK-AND-HOLD:
Differential Inputs
Selectable Full-Scale Input Range
· FLEXIBLE CLOCKING:
Differential or Single-Ended
Accepts Sine or Square Wave Clocking Down to 0.5Vp-p
Variable Threshold Level
ADS5422 Typical Application
· COMMUNICATIONS RECEIVERS
· TEST INSTRUMENTATION
· CCD IMAGING
· TEST INSTRUMENTATION
· CCD IMAGING

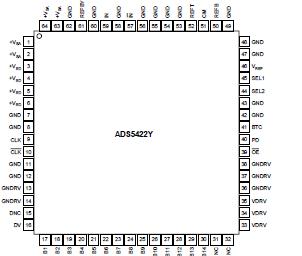

ADS5422 Connection Diagram
ADS5422
