Part Number: ADS7804
Description: The ADS7804 is a complete 12-bit sampling A/D using state-of-the-art CMOS structures. It contains a co...
- Table of contents:
ADS7804
-
Suppliers
DataSheet
General Description
ADS7804 General Description
The ADS7804 is a complete 12-bit sampling A/D using state-of-the-art CMOS structures. It contains a complete 12-bit, capacitor-based, SAR A/D with S/H, reference, clock, interface for microprocessor use, and three-state output drivers.
The ADS7804 is specified at a 100kHz sampling rate, and guaranteed over the full temperature range. Lasertrimmed scaling resistors provide an industrystandard ±10V input range, while the innovative design allows operation from a single +5V supply, with power dissipation under 100mW.
The 28-pin ADS7804 is available in a plastic 0.3" DIP and in an SOIC, both fully specified for operation over the industrial 40°C to +85°C range.
ADS7804 Maximum Ratings
Analog Inputs: VIN .................................................................... ±25V
CAP ............................ +VANA +0.3V to AGND2 0.3V
REF .................................... Indefinite Short to AGND2
Momentary Short to VANA
Ground Voltage Differences: DGND, AGND1, AGND2 ................. ±0.3V
VANA .............................................................................................. 7V
VDIG to VANA ........................................................................... +0.3V
VDIG ............................................................................................ 7V
Digital Inputs ................................................. 0.3V to +VDIG +0.3V
Maximum Junction Temperature .......................................... +165°C
Internal Power Dissipation ................................................... 825mW
Lead Temperature (soldering, 10s) .................................... +300°C
CAP ............................ +VANA +0.3V to AGND2 0.3V
REF .................................... Indefinite Short to AGND2
Momentary Short to VANA
Ground Voltage Differences: DGND, AGND1, AGND2 ................. ±0.3V
VANA .............................................................................................. 7V
VDIG to VANA ........................................................................... +0.3V
VDIG ............................................................................................ 7V
Digital Inputs ................................................. 0.3V to +VDIG +0.3V
Maximum Junction Temperature .......................................... +165°C
Internal Power Dissipation ................................................... 825mW
Lead Temperature (soldering, 10s) .................................... +300°C
ADS7804 Features
`100kHz min SAMPLING RATE
`STANDARD ±10V INPUT RANGE
`72dB min SINAD WITH 45kHz INPUT
`±0.45 LSB max INL
`DNL: 12 Bits "No Missing Codes"
`SINGLE +5V SUPPLY OPERATION
`PIN-COMPATIBLE WITH 16-BIT ADS7805
`USES INTERNAL OR EXTERNAL REFERENCE
`COMPLETE WITH S/H, REF, CLOCK, ETC.
`FULL PARALLEL DATA OUTPUT
`100mW max POWER DISSIPATION
`28-PIN 0.3" PLASTIC DIP AND SOIC
`STANDARD ±10V INPUT RANGE
`72dB min SINAD WITH 45kHz INPUT
`±0.45 LSB max INL
`DNL: 12 Bits "No Missing Codes"
`SINGLE +5V SUPPLY OPERATION
`PIN-COMPATIBLE WITH 16-BIT ADS7805
`USES INTERNAL OR EXTERNAL REFERENCE
`COMPLETE WITH S/H, REF, CLOCK, ETC.
`FULL PARALLEL DATA OUTPUT
`100mW max POWER DISSIPATION
`28-PIN 0.3" PLASTIC DIP AND SOIC

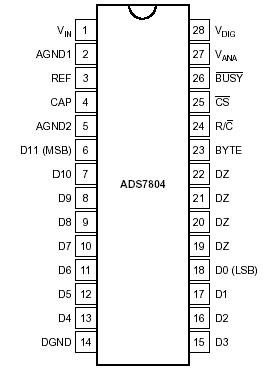

ADS7804 Connection Diagram
ADS7804
