Purchase ADS7808, In-stock ADS7808 From SeekIC.
Part Number: ADS7808
Description: The ADS7808 is a complete 12-bit sampling analogto- digital using state-of-the-art CMOS structures. It...
- Table of contents:
ADS7808
-
Suppliers
DataSheet
General Description
ADS7808 General Description
The ADS7808 is a complete 12-bit sampling analogto- digital using state-of-the-art CMOS structures. It contains a 12-bit capacitor-based SAR A/D with S/H, reference, clock, and a serial data interface. Data can be output using the internal clock, or can be synchronized to an external data clock.
The ADS7808 also provides an output synchronization pulse for ease of use with standard DSP processors.
The ADS7808 is specified at a 100kHz sampling rate, and guaranteed over the full temperature range. Lasertrimmed scaling resistors provide various input ranges including ±10V and 0V to 5V, while an innovative design operates from a single +5V supply, with power dissipation under 100mW. The 20-pin ADS7808 is available in a plastic 0.3" DIP and in an SOIC, both fully specified for operation over the industrial 40°C to +85°C range.
ADS7808 Maximum Ratings
Analog Inputs: R1IN .......................................................... ±25V
R2IN .......................................................... ±25V
R3IN .......................................................... ±25V
CAP ........................ VANA+0.3V to AGND2 0.3V
REF ........................... Indefinite Short to AGND2,
Momentary Short to VANA
Ground Voltage Differences: DGND, AGND2 ..................... ±0.3V
VANA ..................................................................................... 7V
VDIG to VANA ..................................................................... +0.3
VDIG ..................................................................................... 7V
Digital Inputs .......................................... 0.3V to VDIG +0.3V
Maximum Junction Temperature ................................ +165°C
Internal Power Dissipation ........................................... 700mW
Lead Temperature (soldering, 10s) ............................. +300°C
R2IN .......................................................... ±25V
R3IN .......................................................... ±25V
CAP ........................ VANA+0.3V to AGND2 0.3V
REF ........................... Indefinite Short to AGND2,
Momentary Short to VANA
Ground Voltage Differences: DGND, AGND2 ..................... ±0.3V
VANA ..................................................................................... 7V
VDIG to VANA ..................................................................... +0.3
VDIG ..................................................................................... 7V
Digital Inputs .......................................... 0.3V to VDIG +0.3V
Maximum Junction Temperature ................................ +165°C
Internal Power Dissipation ........................................... 700mW
Lead Temperature (soldering, 10s) ............................. +300°C
ADS7808 Features
·100kHz SAMPLING RATE
·72dB SINAD WITH 45kHz INPUT
·±1/2 LSB INL AND DNL
·SIX SPECIFIED INPUT RANGES
·SERIAL OUTPUT
·SINGLE +5V SUPPLY OPERATION
·PIN-COMPATIBLE WITH 16-BIT ADS7809
·USES INTERNAL OR EXTERNAL REFERENCE
·100mW MAX POWER DISSIPATION
·20-PIN 0.3" PLASTIC DIP AND SOIC
·SIMPLE DSP INTERFACE
·72dB SINAD WITH 45kHz INPUT
·±1/2 LSB INL AND DNL
·SIX SPECIFIED INPUT RANGES
·SERIAL OUTPUT
·SINGLE +5V SUPPLY OPERATION
·PIN-COMPATIBLE WITH 16-BIT ADS7809
·USES INTERNAL OR EXTERNAL REFERENCE
·100mW MAX POWER DISSIPATION
·20-PIN 0.3" PLASTIC DIP AND SOIC
·SIMPLE DSP INTERFACE

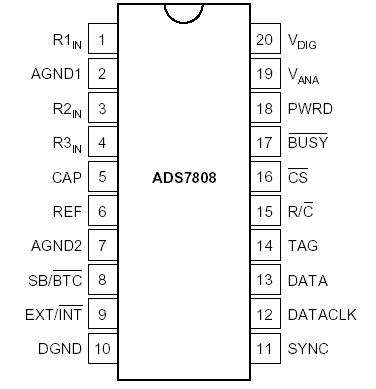

ADS7808 Connection Diagram
ADS7808
PDF/DataSheet Download
- Datasheet: ADS7808
- File Size: 257501 KB
- Manufacturer: Burr-Brown
- Click here to Download
