Part Number: ADS7826
Description: The ADS7826/27/29 is a family of 10/8/12-bit sampling analog-to-digital converters (A/D) with assure...
- Table of contents:
ADS7826
-
Suppliers
DataSheet
General Description
ADS7826 General Description
The ADS7826/27/29 is a family of 10/8/12-bit sampling analog-to-digital converters (A/D) with assured specifi- cations at 2.7-V supply voltage. It requires very little power even when operating at the full sample rate. At lower conversion rates, the high speed of the device enables it to spend most of its time in the power down mode- the power dissipation is less than 60 µW at 7.5 kHz.
The ADS7826/27/29 also features operation from 2.0 V to 5 V, a synchronous serial interface, and a differential input. The reference voltage can be set to any level within the range of 50mV to VCC.
Ultra-low power and small package size make the ADS7826/27/29 family ideal for battery operated systems It is also a perfect fit for remote data acquisition modules, simultaneous multichannel systems, and iso- lated data acquisition. The ADS7826/27/29 family is available in a 3 x 3 8-pin PDSO (SON, same size as QFN) package.
ADS7826 Maximum Ratings
| VCC | 6 V |
| Analog input | -0.3 V to (VCC + 0.3 V) |
| Logic input | -0.3 V to 6 V |
| Case temperature | 100°C |
| Junction temperature | 150°C |
| Storage temperature | 125°C |
| External reference voltage | 5.5 V |
ADS7826 Features
· High Throughput at Low Supply Voltage (2.7 V VCC)
- ADS7829: 12-bit 125 KSPS
- ADS7826: 10-bit 200 KSPS
- ADS7827: 8-bit 250 KSPS
· Very Wide Operating Supply VoltageL:
2.7 V to 5.25 V (as Low as 2.0 V With Reduced Performance)
· Rail-to-Rail, Pseudo Differential Input
· Wide Reference Voltage: 50 mV to VCC
· Micropower Auto Power-Down:
- Less Than 60 µW at 75 kHz, 2.7 V VCC
· Low Power Down Current: 3 µA Max
· Ultra Small Chip Scale Package:
8-pin 3 x 3 PDSO (SON, Same Size as QFN)
· SPITM Compatible Serial Interface
ADS7826 Typical Application
· Battery Operated Systems
· Remote Data Acquisition
· Isolated Data Acquisition
· Simultaneous Sampling, Multichannel Systems
· Remote Data Acquisition
· Isolated Data Acquisition
· Simultaneous Sampling, Multichannel Systems

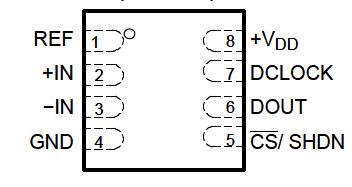

ADS7826 Connection Diagram
ADS7826
