General Description
ADS7830 General Description
The ADS7830 is a single-supply, low-power, 8-bit data acquisition device that features a serial I2C interface and an 8-channel multiplexer. The Analog-to-Digital (A/D) converter features a sample-and-hold amplifier and internal, asynchronous clock. The combination of an I2C serial, 2-wire interface and micropower consumption makes the ADS7830 ideal for applications requiring the A/D converter to be close to the input source in remote locations and for applications requiring isolation. The ADS7830 is available in a TSSOP-16 package.
ADS7830 Maximum Ratings
+VDD to GND ....................................................................... 0.3V to +6V
Digital Input Voltage to GND ................................. 0.3V to +VDD + 0.3V
Operating Temperature Range ...................................... 40 to +105
Storage Temperature Range ......................................... 65 to +150
Junction Temperature (TJ max) ..................................................... +150
TSSOP Package
Power Dissipation ...................................................... (TJ max TA)/ JA
JA Thermal Impedance ............................................................. 240/W
Lead Temperature, Soldering
Vapor Phase (60s) ....................................................................... +215
Infrared (15s) .............................................................................. +220
NOTE: (1) Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. Exposure to absolute maximum conditions for extended periods may affect device reliability.
Digital Input Voltage to GND ................................. 0.3V to +VDD + 0.3V
Operating Temperature Range ...................................... 40 to +105
Storage Temperature Range ......................................... 65 to +150
Junction Temperature (TJ max) ..................................................... +150
TSSOP Package
Power Dissipation ...................................................... (TJ max TA)/ JA
JA Thermal Impedance ............................................................. 240/W
Lead Temperature, Soldering
Vapor Phase (60s) ....................................................................... +215
Infrared (15s) .............................................................................. +220
NOTE: (1) Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. Exposure to absolute maximum conditions for extended periods may affect device reliability.
ADS7830 Features
· 70kHz SAMPLING RATE
· ±0.5LSB INL/DNL
· 8 BITS NO MISSING CODES
· 4 DIFFERENTIAL/8 SINGLE-ENDED INPUTS
· 2.7V TO 5V OPERATION
· BUILT-IN 2.5V REFERENCE/BUFFER
· SUPPORTS ALL THREE I2C MODES: Standard, Fast, and High-Speed
· LOW POWER:
180µW (Standard Mode)
300µW (High-Speed Mode)
675µW (Fast Mode)
· DIRECT PIN COMPATIBLE WITH ADS7828
· TSSOP-16 PACKAGE
· ±0.5LSB INL/DNL
· 8 BITS NO MISSING CODES
· 4 DIFFERENTIAL/8 SINGLE-ENDED INPUTS
· 2.7V TO 5V OPERATION
· BUILT-IN 2.5V REFERENCE/BUFFER
· SUPPORTS ALL THREE I2C MODES: Standard, Fast, and High-Speed
· LOW POWER:
180µW (Standard Mode)
300µW (High-Speed Mode)
675µW (Fast Mode)
· DIRECT PIN COMPATIBLE WITH ADS7828
· TSSOP-16 PACKAGE
ADS7830 Typical Application
· VOLTAGE-SUPPLY MONITORING
· ISOLATED DATA ACQUISITION
· TRANSDUCER INTERFACE
· BATTERY-OPERATED SYSTEMS
· REMOTE DATA ACQUISITION
· ISOLATED DATA ACQUISITION
· TRANSDUCER INTERFACE
· BATTERY-OPERATED SYSTEMS
· REMOTE DATA ACQUISITION

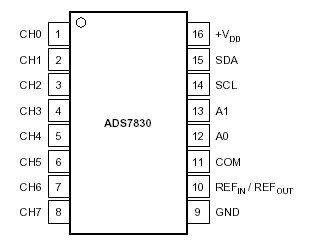

ADS7830 Connection Diagram
ADS7830
PDF/DataSheet Download
- Datasheet: ADS7830
- File Size: 1079746 KB
- Manufacturer: TI
- Click here to Download
