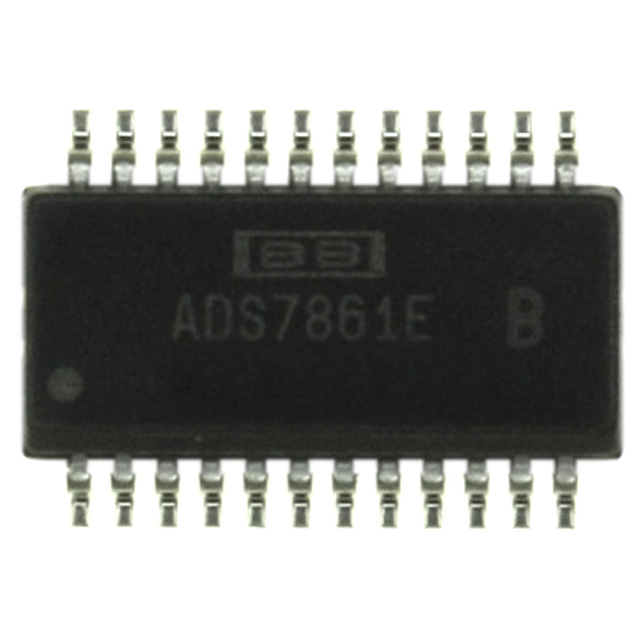

ADS7861EB/2K5: ADC (A/D Converters) Dual 500kHz 2+2 Ch Simltns Smplng ADC

ADS7861EB/2K5 Data Sheet

US $ 3.31~3.31 / Piece | Get Latest Price

Part Number:: ADS7861EB/2K5
Mfg:: Texas Instruments
Supply Ability:: 5000

Price Break

Qty
0~2001
2001~2500

Unit Price
$3.31
$3.31

Processing time
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ADS7223SRHBR evaluate
US $2.66 - 2.66 / Piece

ADC (A/D Converters) 12B 1MSPS 4x2/2x2 Simu Sampling SAR
ADS7223SRHBT evaluate
US $4.63 - 6.14 / Piece

ADC (A/D Converters) 12B 1MSPS 4x2/2x2 Simu Sampling SAR
ADS7229IPW evaluate
US $2.85 - 3.78 / Piece

ADC (A/D Converters) Lo Pwr 12B 1-MHz Sgl Dual Unipolar Inp

Product Details

Quick Details

Number of Converters :	2	Number of ADC Inputs :	4
Architecture :	SAR	Conversion Rate :	500 KSPs
Resolution :	12 bit	Input Type :	Voltage
Interface Type :	Serial, SPI	SNR :	Yes
Voltage Reference :	Internal, External	Supply Voltage - Max :	5.25 V
Supply Voltage - Min :	4.75 V	Maximum Power Dissipation :	42.5 mW
Maximum Operating Temperature :	+ 125 C	Mounting Style :	SMD/SMT
Package / Case :	SSOP-24	Packaging :	Reel

Description

Number of Converters : 2
Number of ADC Inputs : 4
Architecture : SAR
Maximum Operating Temperature : + 125 C
Mounting Style : SMD/SMT
Packaging : Reel
Input Type : Voltage
SNR : Yes
Resolution : 12 bit
Supply Voltage - Max : 5.25 V
Conversion Rate : 500 KSPs
Supply Voltage - Min : 4.75 V
Interface Type : Serial, SPI
Voltage Reference : Internal, External
Package / Case : SSOP-24
Maximum Power Dissipation : 42.5 mW

Parameters:

Technical/Catalog Information	ADS7861EB/2K5
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Bits	12
Package / Case	24-QSOP (SSOP)
Data Interface	Serial
Packaging	Tape & Reel (TR)
Sampling Rate (Per Second)	500k
Operating Temperature	-40°C ~ 125°C
Voltage Supply Source	Analog and Digital
Number of Inputs and Type	8 Single-Ended, Bipolar; 4 Differential, Bipolar
Number of Converters	2
Power Dissipation (Max)	42.5mW
Drawing Number	296; 4073301-4; DBQ; 24
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADS7861EB 2K5 ADS7861EB2K5
