Part Number: ADS7864





Package Cooled: AD

D/C: 07+/08+

Description: The ADS7864 is a dual 12-bit, 500kHz Analog-to-Digital (A/D) converter with 6 fully differential inputchannels grouped ...


Urgent Purchase

ADS7864 General Description


The ADS7864 is a dual 12-bit, 500kHz Analog-to-Digital (A/D) converter with 6 fully differential inputchannels grouped into three pairs for high speed simultaneoussignal acquisition. Inputs to the sample-andholdamplifiers are fully differential and are maintaineddifferential to the input of the A/D converter.This provides excellent common-mode rejection of80dB at 50kHz which is important in highnoiseenvironments.
The ADS7864 offers a parallel interface and controlinputs to minimize software overhead. The output datefor each channel is available as a 16-bit word (addressand data). The ADS7864 is offered in a TQFP-48package and is fully specified over the 40°C to +85°Coperating range.

ADS7864 Features

6 SIMULTANEOUS SAMPLING CHANNELS
FULLY DIFFERENTIAL INPUTS
2ms TOTAL THROUGHPUT PER CHANNEL
GUARANTEED NO MISSING CODES
PARALLEL INTERFACE
1MHz EFFECTIVE SAMPLING RATE
LOW POWER: 50mW
6X FIFO

ADS7864 Typical Application

MOTOR CONTROL
MULTI-AXIS POSITIONING SYSTEMS
3-PHASE POWER CONTROL

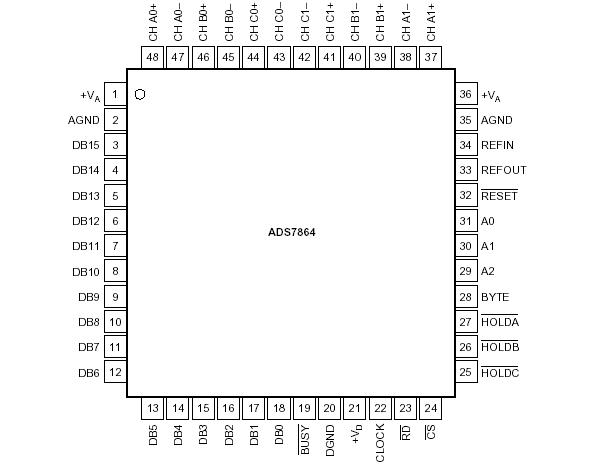

ADS7864 Connection Diagram

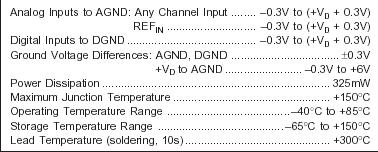

ADS7864 Connection Diagram

ADS7864 datasheet

ADS7864
PDF/DataSheet Download

Find ADS7864 Suppliers
