Part Number: ADS902



MFG: SOP

Package Cooled: BB

D/C: 2005+

Description: The ADS902 is a high speed pipelined analog-todigital converter that is specified to operate from a si...


Urgent Purchase

ADS902 General Description


The ADS902 is a high speed pipelined analog-todigital converter that is specified to operate from a single +5V supply. This converter includes a wide bandwidth track/hold and a 10-bit quantizer. The performance is specified with a single-ended input range of 2.25V to 3.25V, or 2V to 4V. The input range is set by the external reference values.

The ADS902 employs digital error correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for telecommunications, video and test instrumentation applications.

This high performance A/D converter is specified to operate at a 30MHz sampling rate. The ADS902 is available in a 28-pin SSOP package.

ADS902 Maximum Ratings

+VS, LVDD ............................................................................................ +6V
Analog Input ..............................................................................+VS +0.3V
Logic Input .................................................................................+VS +0.3V
Case Temperature ......................................................................... +100
Junction Temperature .................................................................... +150
Storage Temperature .................................................................... +150

ADS902 Features

· HIGH SNR: 57dB
· EXTERNAL REFERENCE
· LOW POWER: 140mW
· ADJUSTABLE FULL SCALE RANGE
· POWER DOWN
·28-PIN SSOP PACKAGE

ADS902 Typical Application

· BATTERY POWERED EQUIPMENT
· CAMCORDERS
· PORTABLE TEST EQUIPMENT
·COMPUTER SCANNERS
· COMMUNICATIONS

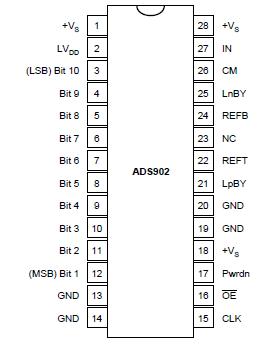

ADS902 Connection Diagram

ADS902 Connection Diagram

ADS902 datasheet

ADS902
