Product Details

Description



Features:

· +2.7V TO +5.5V SUPPLY OPERATION
· LOW POWER: 69mW at +3V
· ADJUSTABLE FULL SCALE RANGE WITH EXTERNAL REFERENCE
· NO MISSING CODES
· POWER DOWN
· 28-LEAD SSOP PACKAGE


Application

· BATTERY POWERED EQUIPMENT
· CAMCORDERS
· PORTABLE TEST EQUIPMENT
· DIGITAL CAMERAS
· COMMUNICATIONS

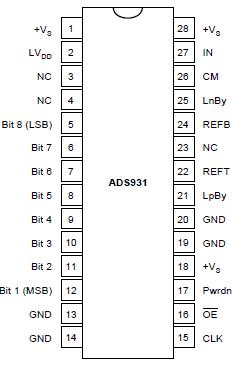

Pinout

Connection Diagram


Specifications

+VS .................................................................................................... +6V
Analog Input ......................................................... (0.3V) to (+VS +0.3V)
Logic Input ........................................................... (0.3V) to (+VS +0.3V)
Case Temperature ......................................................................... +100
Junction Temperature .................................................................... +150
Storage Temperature .....................................................................+150


Description

The ADS931 is a high speed pipelined analog-todigital converter that is specified to operate from standard +5V or +3V power supplies. This converter includes a high bandwidth track/hold and an 8-bit quantizer. The performance is specified with a singleended input range of 1V to 2V when operating off of a +3V supply. ADS931 also allows for standard input ranges such as 2V to 4V or 2V to 3V, when operating on +5V supplies. The full scale input range is set by an external reference.

The ADS931 employs digital error correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for telecommunications, video and test instrumentation applications.

This high performance A/D converter is specified for performance at a 30MHz sampling rate. The ADS931 is available in a 28-Lead SSOP package.
