Purchase ADT7301, In-stock ADT7301 From SeekIC.
MFG:ADI D/C:09
Part Number: ADT7301
MFG: ADI
D/C: 09
Description: The ADT7301 is a complete temperature monitoring system available in SOT-23 and MSOP packages. It cont...
- Table of contents:
ADT7301
-
Suppliers
DataSheet
General Description
ADT7301 General Description

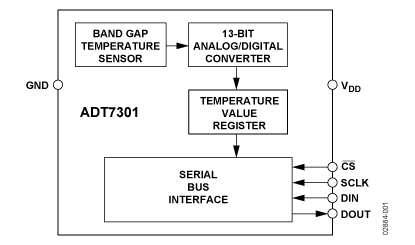

The ADT7301 is a complete temperature monitoring system available in SOT-23 and MSOP packages. It contains a band gap temperature sensor and a 13-bit ADC to monitor and digitize the temperature reading to a resolution of 0.03125°C.
The ADT7301 has a flexible serial interface that allows easy interfacing to most microcontrollers. The interface is compatible with SPI®, QSPI™, and MICROWIRE™ protocols as well as DSPs. The part features a standby mode that is controlled via the serial interface. The ADT7301's wide supply voltage range, low supply current, and SPI compatible interface make it ideal for a variety of applications, including personal computers, office equipment, automotive, and domestic appliances.
The ADT7301 is rated for operation over the -40°C to +150°C temperature range. It is not recommended to operate the device at temperatures above +125°C for greater than a total of 5% (5,000 hours) of the lifetime of the device. Any exposure beyond this limit will affect device reliability.
ADT7301 Maximum Ratings
VDD to GND −0.3 V to +7 V
Digital Input Voltage to GND .. −0.3 V to VDD + 0.3 V
Digital Output Voltage to GND ..−0.3 V to VDD + 0.3 V
Operating Temperature Range1 .. −40°C to +150°C
Storage Temperature Range .. .. −65°C to +150°C
Junction Temperature............. .. +150°C
6-Lead SOT-23 (RJ-6)
Power Dissipation2 ..... WMAX = (TJMAX - TA3)/JA
Thermal Impedance
JA, Junction-to-Ambient (still air).... .. 190.4°C/W
8-Lead MSOP (RM-8)
Power Dissipation2 ..... WMAX = (TJMAX - TA 3)/JA
Thermal Impedance4
JA, Junction-to-Ambient (still air) ...... 205.9°C/W
JC, Junction-to-Case ........... 43.74°C/W
IR Reflow Soldering
Peak Temperature ........ +220°C (−0/+5°C)
Time at Peak Temperature ....... 10 s to 20 s
Ramp-up Rate ............. 2°C/s to 3°C/s
Ramp-down Rate .............. −6°C/sec
Digital Input Voltage to GND .. −0.3 V to VDD + 0.3 V
Digital Output Voltage to GND ..−0.3 V to VDD + 0.3 V
Operating Temperature Range1 .. −40°C to +150°C
Storage Temperature Range .. .. −65°C to +150°C
Junction Temperature............. .. +150°C
6-Lead SOT-23 (RJ-6)
Power Dissipation2 ..... WMAX = (TJMAX - TA3)/JA
Thermal Impedance
JA, Junction-to-Ambient (still air).... .. 190.4°C/W
8-Lead MSOP (RM-8)
Power Dissipation2 ..... WMAX = (TJMAX - TA 3)/JA
Thermal Impedance4
JA, Junction-to-Ambient (still air) ...... 205.9°C/W
JC, Junction-to-Case ........... 43.74°C/W
IR Reflow Soldering
Peak Temperature ........ +220°C (−0/+5°C)
Time at Peak Temperature ....... 10 s to 20 s
Ramp-up Rate ............. 2°C/s to 3°C/s
Ramp-down Rate .............. −6°C/sec
ADT7301 Features
`13-bit temperature-to-digital converter
`−40°C to +150°C operating temperature range
`±0.5°C typical accuracy
`0.03125°C temperature resolution
`Shutdown current of 1 A
`Power dissipation of 0.631 mW at VDD = 3.3 V
`SPI- and DSP-compatible serial interface
`Shutdown mode
`Space-saving SOT-23 and MSOP packages
`−40°C to +150°C operating temperature range
`±0.5°C typical accuracy
`0.03125°C temperature resolution
`Shutdown current of 1 A
`Power dissipation of 0.631 mW at VDD = 3.3 V
`SPI- and DSP-compatible serial interface
`Shutdown mode
`Space-saving SOT-23 and MSOP packages
ADT7301 Typical Application
Medical equipment
Automotive:
·Environmental controls
·Oil temperature
·Hydraulic systems
·Cell phones
·Hard disk drives
·Personal computers
·Electronic test equipment
·Office equipment
·Domestic appliances
·Process control
Automotive:
·Environmental controls
·Oil temperature
·Hydraulic systems
·Cell phones
·Hard disk drives
·Personal computers
·Electronic test equipment
·Office equipment
·Domestic appliances
·Process control
