Features: · RoHS compliant, 16-lead, wide body SOIC package· Low power operation: 5 V· 1.3 mA per channel maximum @ 0 Mbps to 2 Mbps· 3.3 mA per channel maximum @ 10 Mbps· High temperature operation: 105°C· Up to 10 Mbps data rate (NRZ)· Low default output state· Safety and regulatory approvals· U...

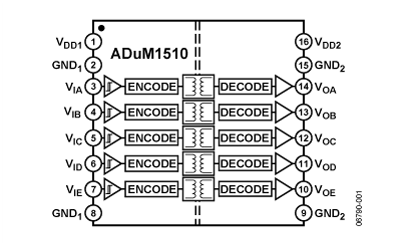

ADuM1510: Features: · RoHS compliant, 16-lead, wide body SOIC package· Low power operation: 5 V· 1.3 mA per channel maximum @ 0 Mbps to 2 Mbps· 3.3 mA per channel maximum @ 10 Mbps· High temperature operation...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Max Operating Temp (°C) | 105Deg |
Insulation Rating (kVrms) | 2.5kV rms |
# Ch | 5 |
Max Prop Delay (ns) | 50ns |
The ADuM15101 is a unidirectional, 5-channel isolator based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices.
By avoiding the use of LEDs and photodiodes, iCoupler devices eliminate the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with iCoupler products. In addition, iCoupler ADuM1510 devices run at one-tenth to one-sixth the power consumption of optocouplers at comparable signal data rates.
The ADuM1510 isolator provides five independent isolation channels supporting data rates up to 10 Mbps. The ADuM1510 operates with the supply voltage of either side ranging from 4.5 V to 5.5 V. Unlike other optocoupler alternatives, the ADuM1510 isolator has a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power-up/ power-down conditions.
1 Protected by U.S. Patents 5,952,849, 6,873,065, and 7,075,329. Other patents pending.
