Purchase ADV7125, In-stock ADV7125 From SeekIC.
MFG:ADI D/C:09
Part Number: ADV7125
MFG: ADI
D/C: 09
Description: The ADV®7125 is a triple high speed, digital-to-analog converter on a single monolithic chip. It c...
- Table of contents:
ADV7125
-
Suppliers
DataSheet
General Description
ADV7125 General Description
The ADV®7125 is a triple high speed, digital-to-analog converter on a single monolithic chip. It consists of three high speed, 8-bit video DACs with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source.
The ADV7125 has three separate 8-bit-wide input ports. A single 5 V/3.3 V power supply and clock are all that are required to make the part functional. The ADV7125 has additional video control signals, composite SYNC and BLANK, as well as a powersave mode.
The ADV7125 is fabricated in a 5 V CMOS process. Its monolithic CMOS construction ensures greater functionality with lower power dissipation. The ADV7125 is available in a 48-lead LQFP package.
ADV7125 Maximum Ratings
VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Voltage on any Digital Pin . . . . . GND 0.5 V to VAA + 0.5 V
Ambient Operating Temperature (TA) . . . . . 40°C to +85°C
Storage Temperature (TS) . . . . . . . . . . . . . .65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . 150°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . 300°C
Vapor Phase Soldering (1 Minute) . . . . . . . . . . . . . . . . 220°C
IOUT to GND2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to VAA
Voltage on any Digital Pin . . . . . GND 0.5 V to VAA + 0.5 V
Ambient Operating Temperature (TA) . . . . . 40°C to +85°C
Storage Temperature (TS) . . . . . . . . . . . . . .65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . 150°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . 300°C
Vapor Phase Soldering (1 Minute) . . . . . . . . . . . . . . . . 220°C
IOUT to GND2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to VAA
ADV7125 Features
`330 MSPS Throughput Rate
`Triple 8-Bit DACs
`RS-343A/RS-170 Compatible Output
`Complementary Outputs
`DAC Output Current Range 2 to 26 mA
`TTL Compatible Inputs
`Internal Reference (1.23 V)
`Single-Supply 5 V/3.3 V Operation
`48-Lead LQFP Package
`Low Power Dissipation (30 mW Min @ 3 V)
`Low Power Standby Mode (6 mW Typ @ 3 V)
`Industrial Temperature Range (40°C to +85°C)
`Triple 8-Bit DACs
`RS-343A/RS-170 Compatible Output
`Complementary Outputs
`DAC Output Current Range 2 to 26 mA
`TTL Compatible Inputs
`Internal Reference (1.23 V)
`Single-Supply 5 V/3.3 V Operation
`48-Lead LQFP Package
`Low Power Dissipation (30 mW Min @ 3 V)
`Low Power Standby Mode (6 mW Typ @ 3 V)
`Industrial Temperature Range (40°C to +85°C)
ADV7125 Typical Application
·Digital Video Systems
·High Resolution Color Graphics
·Digital Radio Modulation
·Image Processing
·Instrumentation
·Video Signal Reconstruction
·High Resolution Color Graphics
·Digital Radio Modulation
·Image Processing
·Instrumentation
·Video Signal Reconstruction

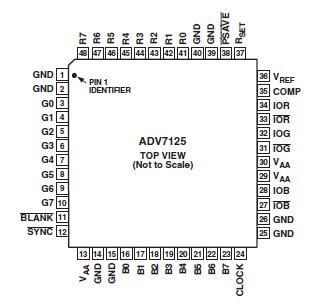

ADV7125 Connection Diagram
ADV7125
