ADV7194

Features: ·10-Bit Extended CCIR-656 Input Data Port·Six High-Quality 10-Bit Video DACs·10-Bit Internal Digital Video Processing·Multistandard Video Input·Multistandard Video Output·4 Oversampling with Internal 54 MHz PLL·Programmable Video Control Includes:·Digital Noise Reduction·Gamma Correctio...

product image

ADV7194 Picture
See larger image
SeekIC No. : 004278198 Detail

ADV7194: Features: ·10-Bit Extended CCIR-656 Input Data Port·Six High-Quality 10-Bit Video DACs·10-Bit Internal Digital Video Processing·Multistandard Video Input·Multistandard Video Output·4 Oversampling w...

ADV7194 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADV7194
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·10-Bit Extended CCIR-656 Input Data Port
·Six High-Quality 10-Bit Video DACs
·10-Bit Internal Digital Video Processing
·Multistandard Video Input
·Multistandard Video Output
·4 Oversampling with Internal 54 MHz PLL
·Programmable Video Control Includes:
·Digital Noise Reduction
·Gamma Correction
·Black Burst
·LUMA Delay
·CHROMA Delay
·Multiple Luma and Chroma Filters
·Luma SSAF™ (Super Sub-Alias Filter)
·Average Brightness Detection
·Field Counter
·CGMS (Copy Generation Management System)
·WSS (Wide Screen Signaling)
·Closed Captioning Support
·Teletext Insertion Port (PAL-WST)
·2-Wire Serial MPU Interface (I2C Compatible and Fast I2C)
·Supply Voltage 5 V and 3.3 V Operation
·80-Lead LQFP Package




Application

·Professional DVD Playback Systems
·PC Video/Multimedia Playback Systems
·Progressive Scan Playback Systems
·Professional Studio Equipment

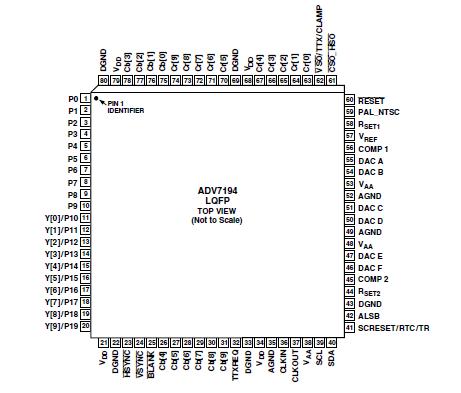

Pinout

Connection Diagram




Specifications

# DAC 6
Resolution (Bits) 10bit
Input Data Resolution 10bit
Max Oversampling (MHz) 54MHz
Standard Definition X
Prog Scan X
Component RGB/YPbPr X
CVBS/S-Video X
I/O Supply (V) 3.3 or 5V
A & D Core Supply (V) 3.3 or 5V
Package 80-Lead LQFP


VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Voltage on Any Digital Input Pin . . .GND 0.5 V to VAA + 0.5 V
Storage Temperature (TS) . . . . . . . . . . . . . . 65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . 150°C
Body Temperature (Soldering, 10 secs) . . . . . . . . . . . . . 220°C
Analog Outputs to GND2 . . . . . . . . . . . . . . GND 0.5 to VAA




Description

The ADV7194 is part of the new generation of video encoders from Analog Devices. The device builds on the performance of previous video encoders and provides new features like interfacing progressive scan devices, digital noise reduction, gamma correction, 4* oversampling and 54 MHz operation, average brightness detection, black burst signal generation, chroma delay, an additional Chroma Filter, etc.

The ADV7194 supports NTSC-M, NTSC-N (Japan), PAL N, PAL-B/D/G/H/I and PAL-60 standards. Input standards supported include ITU-R.BT656 4:2:2 YCrCb in 8-, 10-, 16- or 20-bit format and 3* 10-bit YCrCb progressive scan format.

The ADV7194 can output composite video (CVBS), S-Video (Y/C), Component YUV or RGB and analog progressive scan in YPrPb format. The analog component output is also compatible with Betacam, MII and SMPTE/EBU N10 levels, SMPTE 170M NTSC and ITU-R.BT 470 PAL.

For more information about the ADV7194's features refer to Detailed Description of Features section.
